DCMW 32505T00315ME KBN010 Grade CBN, Indexable Turning Insert
$63.23
(No reviews yet)
Write a Review
DCMW 32505T00315ME KBN010 Grade CBN, Indexable Turning Insert
DCMW 32505T00315ME KBN010 Grade CBN, 55 Degree Diamond, Positive Rake Angle, Neutral Turning Insert for Continuous Machining of (H) Hardened Materials
- Tool Style:
- DCMW
- Insert Size:
- 32505
- Insert Grade:
- KBN010
- Material:
- CBN
- Coating Process:
- PVD

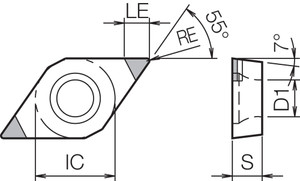

- [IC] Inscribed Circle:
- 3/8"
- [IC] Inscribed Circle (mm):
- 9.525
- [S] Thickness:
- 5/32"
- [S] Thickness (mm):
- 3.97
- [RE] Corner Radius:
- 0.008"
- [RE] Corner Radius (mm):
- 0.20
- [LE] CBN/PCD Tip Length (Decimal Inch):
- 0.0748
- [LE] CBN/PCD Tip Length (mm):
- 1.90
- Application:
- Back Boring|Copying|External Turning
- Hand:
- Neutral
- Rake:
- Positive
- [EPSR] Insert Included Angle (Degree):
- 55
- Primary Workpiece Material:
- (H) Hardened Materials
- Insert Shape:
- 55 Degree Diamond
- Number of Cutting Edges:
- 2
- Usage Classification:
- Continuous
- Cutting Range:
- Finishing-Medium
- Insert Holding Method:
- Screw or Clamp
- ANSI Part Number:
- DCMW32505T00315MEKBN010
- ISO Part Number:
- DCMW11T302T00815ME
- Compatible Toolholder (Partial):
- Please Refer to Catalog for Compatible Toolholders
