DCMW 3251T00315ME KBN60M Grade CBN, Indexable Turning Insert
$70.88
(No reviews yet)
Write a Review

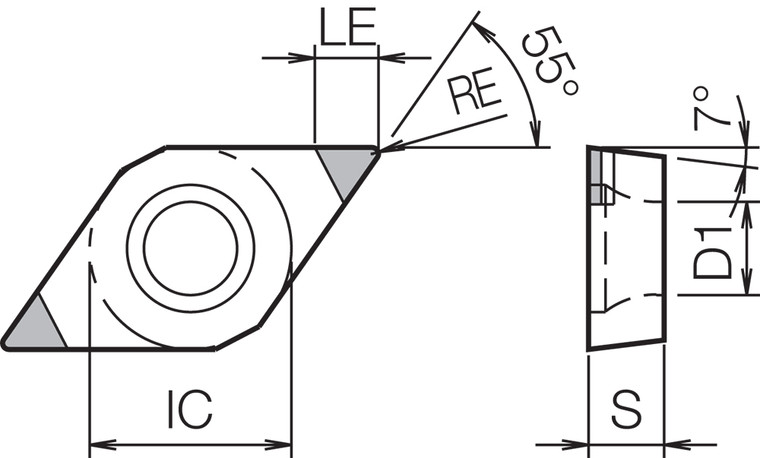

DCMW 3251T00315ME KBN60M Grade CBN, Indexable Turning Insert
DCMW 3251T00315ME KBN60M Grade CBN, 7 Degree, Diamond, Positive Rake Angle, Neutral Turning Insert for Light Interruption and Finishing-Medium in (K) Nodular Cast Iron
- Tool Style:
- DCMW
- Insert Size:
- 3251
- Insert Grade:
- KBN60M
- Material:
- CBN
- Coating Process:
- PVD
- [IC] Inscribed Circle (mm):
- 9.525
- [S] Thickness (mm):
- 3.97
- [RE] Corner Radius (mm):
- 0.40
- Application:
- Back Boring|Copying|External Turning
- Hand:
- Neutral
- Rake:
- Positive
- [EPSR] Insert Included Angle (Degree):
- 55
- Primary Workpiece Material:
- (K) Nodular Cast Iron
- Insert Shape:
- 55 Degree Diamond
- Number of Cutting Edges:
- 2
- Usage Classification:
- Light Interruption
- Cutting Range:
- Finishing-Medium
- Insert Holding Method:
- Screw or Clamp
- Feature 1:
- Insert for External Turning, Copying, Back Boring
- Feature 2:
- Multi-Edge with 2 Cutting Edges
- Feature 3:
- Heat-resistant MEGACOAT on CBN rich substrate with hard binder phase
- Feature 4:
- Application: High speed finishing of gray cast iron
- ANSI Part Number:
- DCMW3251T00315MEKBN60M
- ISO Part Number:
- DCMW11T304T00815ME
- US Stock:
- 50
- Worldwide Stock:
- 983
- Old Material Number:
- 8828861
- Compatible Toolholder (Partial):
- Please Refer to Catalog for Compatible Toolholders
- [IC] Inscribed Circle:
- 3/8"
- [S] Thickness:
- 5/32"
- [RE] Corner Radius:
- 1/64"
- [LE] CBN/PCD Tip Length (Decimal Inch):
- 0.0669
- [LE] CBN/PCD Tip Length (mm):
- 1.70
