DDJNL 2020K1506, Indexable Turning Toolholder
$94.05
(No reviews yet)
Write a Review
DDJNL 2020K1506, Indexable Turning Toolholder
DDJNL 2020K1506, Left-Hand, Negative Rake, 93 Degree Lead Angle, Indexable Turning Toolholder for External Turning, Copying Applications
- Tool Style:
- DDJN
- Material:
- Steel
- Application:
- Copying|External Turning
- Hand:
- Left-Hand
- Rake:
- Negative
- [KAPR] Tool Entering Angle (Degree):
- 93
- Insert Shape:
- 55 Degree Diamond
- [H] Shank Height (mm):
- 20.00
- [B] Shank Width (mm):
- 20.00
- Coolant Through (Yes/No):
- No
- Insert Holding Method:
- Double Clamp
- Unit (inch/mm):
- mm
- Feature 1:
- Left-Hand Toolholder
- Feature 2:
- Application: External Turning, Copying
- Feature 3:
- Double Clamp Insert Holding Design
- Feature 4:
- Compatible with Left-Hand DNMG44…, DNMX44…, DNGG44…, DNGA44…, DNMM44… Style Inserts
- Feature 5:
- Firmly Clamps the Insert in Two Directions with One Action
- ANSI Part Number:
- DDJNL2020K1506
- ISO Part Number:
- DDJNL2020K-1506
- US Stock:
- 3
- Worldwide Stock:
- 11
- Compatible Inserts (Partial):
- DNMG44…, DNMX44…, DNGG44…, DNGA44…, DNMM44…
- Old Material Number:
- 8828522
- Clamp:
- CP-3D
- Clamp Screw:
- CS-3D
- Shim:
- DD-43*
- Shim Screw:
- SB-4085TR
- Spring:
- SP-3D
- Wrench (for Clamp Screw):
- LW-3
- Wrench (for Shim Screw):
- FT-15 (Sold Separately)

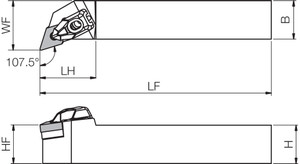

- [LF] Functional Length (mm):
- 125.00
- [LH] Head Length (mm):
- 39.00
- Product Notes 1:
- *Use DC-44 shim (sold separately) if using DN..43 type inserts with different thickness.
- Product Notes 2:
- When using inserts with a corner-R (RE) greater than 1/16", additional modifications of the shim are necessary to prevent workpiece and shim from interfering with each other.
- [H] Shank Height (Decimal Inch):
- 0.7874
- [B] Shank Width (Decimal Inch):
- 0.7874
- [LF] Functional Length (Decimal Inch):
- 4.9213
- [LH] Head Length (Decimal Inch):
- 1.5354
