DNGA 433ME4 KBN05M Grade CBN, Indexable Turning Insert
$95.79
(No reviews yet)
Write a Review
DNGA 433ME4 KBN05M Grade CBN, Indexable Turning Insert
DNGA 433ME4 KBN05M Grade CBN, 0 Degree, Diamond, Negative Rake Angle, Neutral Turning Insert for Continuous and Finishing-Medium in (H) Hardened Materials
- Tool Style:
- DNGA
- Insert Size:
- 433
- Insert Grade:
- KBN05M
- Material:
- CBN
- Coating Process:
- PVD

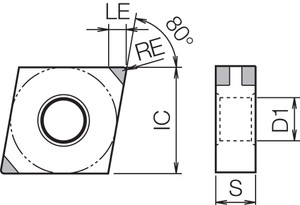

- [IC] Inscribed Circle (mm):
- 12.70
- [S] Thickness (mm):
- 4.76
- [RE] Corner Radius (mm):
- 1.20
- Application:
- Boring|Copying|External Turning
- Hand:
- Neutral
- Rake:
- Negative
- [EPSR] Insert Included Angle (Degree):
- 55
- Primary Workpiece Material:
- (H) Hardened Materials
- Insert Shape:
- 55 Degree Diamond
- Number of Cutting Edges:
- 4
- Usage Classification:
- Continuous
- Cutting Range:
- Finishing-Medium
- Insert Holding Method:
- Screw or Clamp
- Feature 1:
- Insert for External Turning, Copying, Boring
- Feature 2:
- Double-Sided / Multi-Edge with 4 Cutting Edges
- Feature 3:
- Heat-resistant MEGACOAT on highly heat-resistant CBN substrate
- Feature 4:
- Application: High speed finishing of hardened steel
- ANSI Part Number:
- DNGA433ME4KBN05M
- ISO Part Number:
- DNGA150412ME4
- US Stock:
- 13
- Worldwide Stock:
- 7
- Old Material Number:
- 8848935
- Compatible Toolholder (Partial):
- Please Refer to Catalog for Compatible Toolholders
- [IC] Inscribed Circle:
- 1/2"
- [S] Thickness:
- 3/16"
- [RE] Corner Radius:
- 3/64"
- [LE] CBN/PCD Tip Length (Decimal Inch):
- 0.0748
- [LE] CBN/PCD Tip Length (mm):
- 1.90
