DNGA 433S00525ME KBN475 Grade CBN, Indexable Turning Insert
$70.88
(No reviews yet)
Write a Review
DNGA 433S00525ME KBN475 Grade CBN, Indexable Turning Insert
DNGA 433S00525ME KBN475 Grade CBN, 0 Degree, Diamond, Negative Rake Angle, Neutral Turning Insert for Continuous and Finishing in (K) Nodular Cast Iron
- Tool Style:
- DNGA
- Insert Size:
- 433
- Insert Grade:
- KBN475
- Material:
- CBN
- Coating Process:
- Uncoated

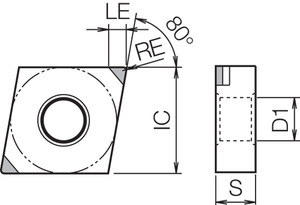

- [IC] Inscribed Circle (mm):
- 12.70
- [S] Thickness (mm):
- 4.76
- [RE] Corner Radius (mm):
- 1.20
- Application:
- Boring|Copying|External Turning
- Hand:
- Neutral
- Rake:
- Negative
- [EPSR] Insert Included Angle (Degree):
- 55
- Primary Workpiece Material:
- (K) Nodular Cast Iron
- Insert Shape:
- 55 Degree Diamond
- Number of Cutting Edges:
- 2
- Usage Classification:
- Continuous
- Cutting Range:
- Finishing
- Insert Holding Method:
- Screw or Clamp
- Feature 1:
- Insert for External Turning, Copying, Boring
- Feature 2:
- Multi-Edge with 2 Cutting Edges
- Feature 3:
- Excellent wear resistance due to high CBN content and special binder
- Feature 4:
- Application: High speed machining of gray cast iron
- ANSI Part Number:
- DNGA433S00525MEKBN475
- ISO Part Number:
- DNGA150412S01225ME
- Old Material Number:
- 8844300
- Compatible Toolholder (Partial):
- Please Refer to Catalog for Compatible Toolholders
- [IC] Inscribed Circle:
- 1/2"
- [S] Thickness:
- 3/16"
- [RE] Corner Radius:
- 3/64"
- [LE] CBN/PCD Tip Length (Decimal Inch):
- 0.0748
- [LE] CBN/PCD Tip Length (mm):
- 1.90
