DNMG 433PG PR1535 Grade PVD Carbide, Indexable Turning Insert
$22.08
(No reviews yet)
Write a Review
DNMG 433PG PR1535 Grade PVD Carbide, Indexable Turning Insert
DNMG 433PG PR1535 Grade PVD Carbide, 0 Degree, Diamond, Negative Rake Angle, Neutral Turning Insert for Light Interruption and Medium-Roughing in (S) Heat-Resistant Alloy, (S) Titanium Alloy, (M) Stainless Steel
- Tool Style:
- DNMG
- Insert Size:
- 433
- Chipbreaker:
- PG
- Insert Grade:
- PR1535
- Material:
- Carbide
- Coating Process:
- PVD

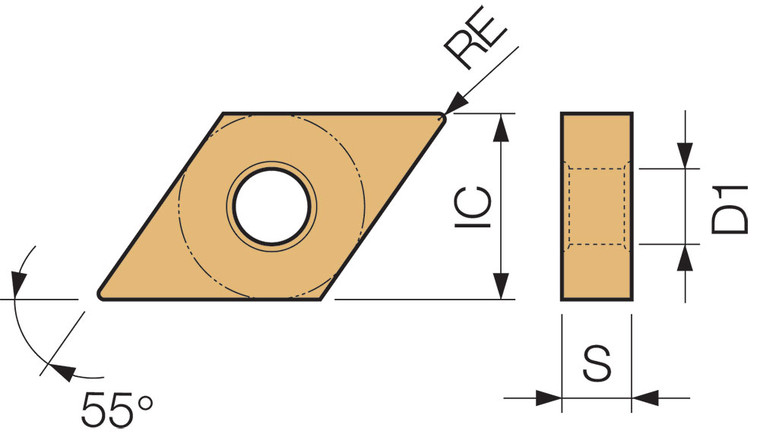

- [IC] Inscribed Circle (mm):
- 12.70
- [S] Thickness (mm):
- 4.76
- [RE] Corner Radius (mm):
- 1.20
- Application:
- Boring|Copying|External Turning
- Hand:
- Neutral
- Rake:
- Negative
- [EPSR] Insert Included Angle (Degree):
- 55
- Primary Workpiece Material:
- (M) Stainless Steel|(S) Heat-Resistant Alloy|(S) Titanium Alloy
- Insert Shape:
- 55 Degree Diamond
- Number of Cutting Edges:
- 4
- Usage Classification:
- Light Interruption
- Cutting Range:
- Medium-Roughing
- Insert Holding Method:
- Screw or Clamp
- Feature 1:
- Insert for External Turning, Copying, Boring
- Feature 2:
- 4 Cutting Edges
- Feature 3:
- Stabilized turning operations and long tool life with MEGACOAT NANO coating technology
- Feature 4:
- Application: PVD for titanium alloy and precipitation hardened stainless steel
- ANSI Part Number:
- DNMG433PGPR1535
- ISO Part Number:
- DNMG150412PG
- Old Material Number:
- 8843979
- Compatible Toolholder (Partial):
- Please Refer to Catalog for Compatible Toolholders
- [IC] Inscribed Circle:
- 1/2"
- [S] Thickness:
- 3/16"
- [RE] Corner Radius:
- 3/64"
