DR1181X3N, HOLESHOT Drill 1.1810" Cutting Diameter, Indexable Insert Drill
$524.88
(No reviews yet)
Write a Review
DR1181X3N, HOLESHOT Drill 1.1810" Cutting Diameter, Indexable Insert Drill
DR1181X3N, HOLESHOT Drill 1.1810" Cutting Diameter, 1.0000" Shank Diameter, Coolant-Through Indexable Insert Drill
- Tool Style:
- DR
- Material:
- Steel
- Application:
- Drilling
- Hand:
- Right-Hand

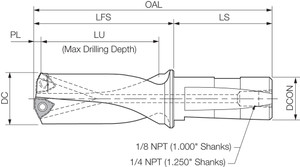

- [DCN] Cutting Diameter Minimum (mm):
- 30.00
- [DCX] Cutting Diameter Maximum (mm):
- 30.00
- Drill Depth by Diameter Ratio:
- n/a
- [LU] Usable Length (mm):
- 89.92
- Number of Inserts:
- 2
- Number of Flutes:
- 2
- Shank Type:
- Standard Length
- Weldon Flat:
- Yes
- [DCON] Connection Diameter (mm):
- 25.40
- Coolant Through (Yes/No):
- Yes
- Insert Holding Method:
- Screw
- Unit (inch/mm):
- inch
- Feature 1:
- Sharp Cutting with Enhanced Chip Evacuation
- Feature 2:
- Superior Fracture Resistance and Long Tool Life with MEGACOAT NANO Coating Technology
- Feature 3:
- Flute Designs Optimized for Maximum Rigidity and Good Chip Evacuation
- Feature 4:
- Patented Swept Back Design Enables Drilling of Stacked Plates and Welded Assemblies, Reduces Slug Formation, and Provides Excellent Chip Control
- ANSI Part Number:
- DR1181X3N
- ISO Part Number:
- DR1181X3N
- Compatible Inserts (Partial):
- WCMX06T308-M1…, WCMX06T308-M1A…
- Old Material Number:
- 8600807
- Insert Screw:
- SCR-30
- Wrench (for Insert Screw):
- T10
- [DC] Cutting Diameter (Decimal Inch):
- 1.1811
- [DC] Cutting Diameter (mm):
- 30.00
- [DCN] Cutting Diameter Minimum (Decimal Inch):
- 1.1811
- [DCX] Cutting Diameter Maximum (Decimal Inch):
- 1.1811
- [LU] Usable Length (Decimal Inch):
- 3.5402
- [DCON] Connection Diameter (Decimal Inch):
- 1.0000
- [PL] Point Length (Decimal Inch):
- 0.1689
- [LS] Shank Length (mm):
- 57.91
- [LS] Shank Length (Decimal Inch):
- 2.2799
- [OAL] Overall Length (mm):
- 172.21
- [OAL] Overall Length (Decimal Inch):
- 6.7799
- [PL] Point Length (mm):
- 4.29
