DRV CH23, DRV Magic Drill Series, Chamfer Attachment

DRV CH23, DRV Magic Drill Series, Chamfer Attachment

SKU:
THD11848
|
UPC:
4960664880195
$345.32
(No reviews yet)
Width:
2.76 (in)
Height:
2.76 (in)
Depth:
3.54 (in)
Current Stock:
Adding to cart… The item has been added
Description
DRV CH23 Chamfer Attachment with a 2.50mm Chamfer Depth that is Compatible with CH0503-45 Inserts for the DRV Magic Drill Series
Additional Information
Tool Style:
DRV-CH
Material:
Steel
Application:
Chamfering|Drilling
Hand:
Neutral

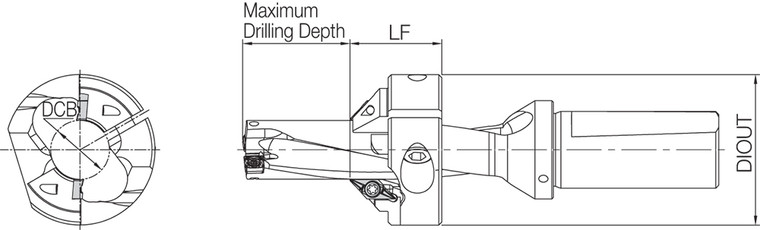

[DCB] Connection Bore Diameter (mm):
22.20
Unit (inch/mm):
mm
Adjustable Depth:
No
Feature 1:
DRV Magic Drill Series Chamfer Attachment
ANSI Part Number:
DRVCH23
ISO Part Number:
DRV-CH23
US Stock:
0
Worldwide Stock:
3
Compatible Inserts (Partial):
CH0503-45
Old Material Number:
8862000
Clamp Screw:
HH6X18
Insert Screw:
SB-3080TR
Wrench (for Insert Screw):
FT-10
Wrench (for Clamp Screw):
LW-5
Tightening Torque:
10 Nm (for HH6X18)
Compatible Drill Body (Partial):
S25-DRV225M-...-07, S25-DRV230M-...-07
[LF] Functional Length (mm):
30.00
[DCB] Connection Bore Diameter (Decimal Inch):
0.8740
[LF] Functional Length (Decimal Inch):
1.1811
