DTGNL 2525M16JCT, Indexable Coolant-Through Turning Toolholder
$259.56
(No reviews yet)
Write a Review
DTGNL 2525M16JCT, Indexable Coolant-Through Turning Toolholder
DTGNL 2525M16JCT, Left-Hand, Negative Rake, 91 Degree Lead Angle, Coolant-Through, Indexable Turning Toolholder for External Turning, Facing Applications
- Tool Style:
- DTGN-JCT
- Material:
- Steel
- Application:
- External Turning
- Hand:
- Left-Hand
- Rake:
- Negative
- [KAPR] Tool Entering Angle (Degree):
- 91
- Insert Shape:
- 60 Degree Triangle
- [H] Shank Height (mm):
- 25.00
- [B] Shank Width (mm):
- 25.00
- Coolant Through (Yes/No):
- Yes
- Insert Holding Method:
- Double Clamp
- Unit (inch/mm):
- mm
- Coolant Pressure Resistance (psi):
- 4,350
- Feature 1:
- Left-Hand Toolholder
- Feature 2:
- Application: External Turning, Facing
- Feature 3:
- Double Clamp Insert Holding Design
- Feature 4:
- Jet Coolant-Through System
- Feature 5:
- Discharges coolant in two directions to improve chip control and lengthen tool life for a wide variety of workpieces including steel, hardened steel and difficult-to-cut material
- Feature 6:
- Compatible with Left-Hand or Neutral TN..33… Style Inserts
- ANSI Part Number:
- DTGNL2525M16JCT
- ISO Part Number:
- DTGNL2525M-16JCT
- US Stock:
- 0
- Worldwide Stock:
- 6
- Compatible Inserts (Partial):
- TNMG33…, TNMX33…, TNGG33…, TNGA33…, TNMM33…
- Old Material Number:
- 8867158
- Clamp:
- CP-2D-L-JCT
- Clamp Screw:
- CS-3D-TR
- Shim:
- DT-32*
- Shim Screw:
- SB-3080TR
- Spring:
- SP-3D
- Pipe Connection (with O-Ring):
- FP-12*
- Wrench (for Clamp Screw):
- FT-15
- Wrench (for Shim Screw):
- FT-10 (Sold Separately)

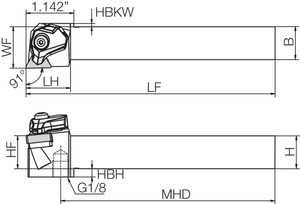

- [LF] Functional Length (mm):
- 150.00
- [LH] Head Length (mm):
- 27.00
- Product Notes 1:
- *O-ring SS-035 for pipe connection is also available but sold separately.
- Product Notes 2:
- When using inserts with a corner-R (RE) greater than 1/16", additional modifications of the shim are necessary to prevent workpiece and shim from interfering with each other.
- [H] Shank Height (Decimal Inch):
- 0.9843
- [B] Shank Width (Decimal Inch):
- 0.9843
- [LF] Functional Length (Decimal Inch):
- 5.9055
- [LH] Head Length (Decimal Inch):
- 1.0630
