DVLNL 2525M16, Indexable Turning Toolholder

DVLNL 2525M16, Indexable Turning Toolholder

SKU:
THC13273
|
UPC:
4960664581597
$102.12
(No reviews yet)
Width:
1.97 (in)
Height:
1.97 (in)
Depth:
14.17 (in)
Current Stock:
Adding to cart… The item has been added
Description
DVLNL 2525M16, Left-Hand, Negative Rake, 95 Degree Lead Angle, Indexable Turning Toolholder for External Turning, Copying Applications
Additional Information
Tool Style:
DVLN
Material:
Steel
Application:
Copying|External Turning
Hand:
Left-Hand
Rake:
Negative
[KAPR] Tool Entering Angle (Degree):
95
Insert Shape:
35 Degree Diamond
[H] Shank Height (mm):
25.00
[B] Shank Width (mm):
25.00
Coolant Through (Yes/No):
No
Insert Holding Method:
Double Clamp
Unit (inch/mm):
mm
Feature 1:
Left-Hand Toolholder
Feature 2:
Application: External Turning, Copying
Feature 3:
Double Clamp Insert Holding Design
Feature 4:
Compatible with Left-Hand VNMG33…, VNMA33…, VNMM33... Style Inserts
Feature 5:
Firmly Clamps the Insert in Two Directions with One Action
ANSI Part Number:
DVLNL2525M16
ISO Part Number:
DVLNL2525M-16
US Stock:
17
Worldwide Stock:
199
Compatible Inserts (Partial):
VNMG33…, VNMA33…, VNMM33…
Old Material Number:
8828603
Clamp:
CP-5D
Clamp Screw:
CS-5D
Shim:
DV-33
Shim Screw:
SB-4085TR
Spring:
SP-5D
Wrench (for Clamp Screw):
LW-3
Wrench (for Shim Screw):
FT-15 (Sold Separately)

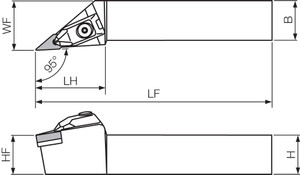

[LF] Functional Length (mm):
150.00
[LH] Head Length (mm):
45.00
[H] Shank Height (Decimal Inch):
0.9843
[B] Shank Width (Decimal Inch):
0.9843
[LF] Functional Length (Decimal Inch):
5.9055
[LH] Head Length (Decimal Inch):
1.7717
