DVLNR 163DJCT, Indexable Coolant-Through Turning Toolholder

DVLNR 163DJCT, Indexable Coolant-Through Turning Toolholder

SKU:
THC14947
|
UPC:
4960664944491
$337.43
(No reviews yet)
Width:
2.00 (in)
Height:
2.00 (in)
Depth:
6.25 (in)
Current Stock:
Adding to cart… The item has been added
Description
DVLNR 163DJCT, Right-Hand, Negative Rake, 95 Degree Lead Angle, Coolant-Through, Indexable Turning Toolholder for External Turning, Copying Applications
Additional Information
Tool Style:
DVLN-JCT
Material:
Steel
Application:
Copying|External Turning
Hand:
Right-Hand
Rake:
Negative

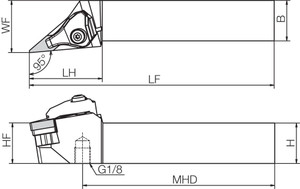

[KAPR] Tool Entering Angle (Degree):
95
Insert Shape:
35 Degree Diamond
[H] Shank Height (mm):
25.40
[B] Shank Width (mm):
25.40
Coolant Through (Yes/No):
Yes
Insert Holding Method:
Double Clamp
Unit (inch/mm):
inch
Coolant Pressure Resistance (psi):
4,350
Feature 1:
Right-Hand Toolholder
Feature 2:
Application: External Turning, Copying
Feature 3:
Double Clamp Insert Holding Design
Feature 4:
Jet Coolant-Through System
Feature 5:
Discharges coolant in two directions to improve chip control and lengthen tool life for a wide variety of workpieces including steel, hardened steel and difficult-to-cut material
Feature 6:
Compatible with Right-Hand or Neutral VN..33… Style Inserts
ANSI Part Number:
DVLNR163DJCT
ISO Part Number:
DVLNR16-3DJCT
US Stock:
5
Worldwide Stock:
0
Compatible Inserts (Partial):
VNMG33…, VNMA33…, VNMM33…
Old Material Number:
8867343
Clamp:
CP-5D-JCT
Clamp Screw:
CS-3D-TR
Shim:
DV-33*
Shim Screw:
SB-408STR
Spring:
SP-3D
Pipe Connection (with O-Ring):
FP-12*
Wrench (for Clamp Screw):
FT-15
[LF] Functional Length (mm):
152.40
[LH] Head Length (mm):
45.00
Product Notes 1:
*O-ring SS-035 for pipe connection is also available but sold separately.
Product Notes 2:
When using inserts with a corner-R (RE) greater than 1/16", additional modifications of the shim are necessary to prevent workpiece and shim from interfering with each other.
[H] Shank Height (Decimal Inch):
1.0000
[B] Shank Width (Decimal Inch):
1.0000
[LF] Functional Length (Decimal Inch):
6.0000
[LH] Head Length (Decimal Inch):
1.7717
