DVVNN 163D, Indexable Turning Toolholder

DVVNN 163D, Indexable Turning Toolholder

SKU:
THC89599
|
UPC:
4960664594702
$109.88
(No reviews yet)
Width:
2.00 (in)
Height:
2.00 (in)
Depth:
6.00 (in)
Current Stock:
Adding to cart… The item has been added
Description
DVVNN 163D, Neutral, Negative Rake, 72.5 Degree Lead Angle, Indexable Turning Toolholder for External Turning, Copying Applications
Additional Information
Tool Style:
DVVN
Material:
Steel
Application:
Copying|External Turning
Hand:
Neutral
Rake:
Negative
[KAPR] Tool Entering Angle (Degree):
72.5
Insert Shape:
35 Degree Diamond
[H] Shank Height (mm):
25.40
[B] Shank Width (mm):
25.40
Coolant Through (Yes/No):
No
Insert Holding Method:
Double Clamp
Unit (inch/mm):
inch
Feature 1:
Neutral Toolholder
Feature 2:
Application: External Turning, Copying
Feature 3:
Double Clamp Insert Holding Design
Feature 4:
Compatible with Neutral VNMG33…, VNMA33…, VNMM33... Style Inserts
Feature 5:
Firmly Clamps the Insert in Two Directions with One Action
ANSI Part Number:
DVVNN163D
ISO Part Number:
DVVNN16-3D
US Stock:
12
Worldwide Stock:
0
Compatible Inserts (Partial):
VNMG33…, VNMA33…, VNMM33…
Old Material Number:
8828334
Clamp:
CP-5D
Clamp Screw:
CS-5D
Shim:
DV-33
Shim Screw:
SB-4085TR
Spring:
SP-5D
Wrench (for Clamp Screw):
LW-3
Wrench (for Shim Screw):
FT-15 (Sold Separately)

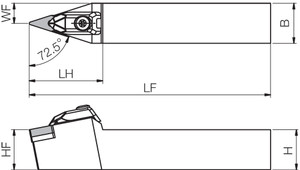

[LF] Functional Length (mm):
152.40
[LH] Head Length (mm):
46.00
[H] Shank Height (Decimal Inch):
1.0000
[B] Shank Width (Decimal Inch):
1.0000
[LF] Functional Length (Decimal Inch):
6.0000
[LH] Head Length (Decimal Inch):
1.8110
