E10NSCLPL0812AN Left-Hand, Positive Rake, Coolant-Through Boring Bar

E10NSCLPL0812AN Left-Hand, Positive Rake, Coolant-Through Boring Bar

SKU:
THC14578
|
UPC:
4960664766284
$395.58
(No reviews yet)
Width:
1.54 (in)
Height:
1.54 (in)
Depth:
8.27 (in)
Current Stock:
Adding to cart… The item has been added
Description
E10NSCLPL0812AN Left-Hand, Positive Rake, Dynamic Bar Coolant-Through Boring Bar with 95 Degree Lead Angle and 12.00mm Minimum Bore Dia.
Additional Information
Tool Style:
E...SCLP-AN
Material:
Steel/Carbide
Bar Type:
Carbide Shank
Application:
Boring|Internal Facing
Hand:
Left-Hand
Rake:
Positive

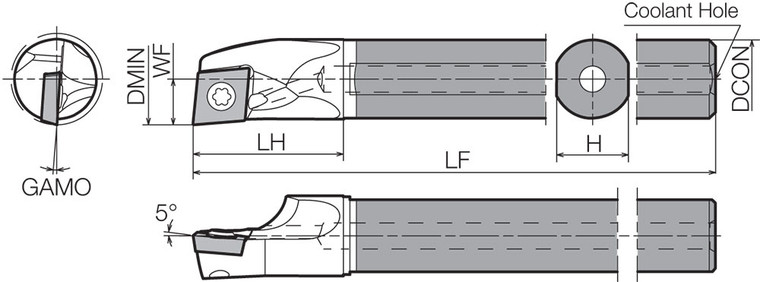

[KAPR] Tool Entering Angle (Degree):
95
Insert Shape:
80 Degree Diamond
[DMIN] Minimum Bore Diameter (mm):
12.00
[H] Shank Height (mm):
9.00
[DCON] Connection Diameter (mm):
10.00
Coolant Through (Yes/No):
Yes
Insert Holding Method:
Screw
Unit (inch/mm):
mm
Feature 1:
Maximum structural thickness for higher toolholder rigidity and controlled chattering for stable machining
Feature 2:
Large chip pocket provides superior chip evacuation
Feature 3:
Anti-chatter vibration performance
Feature 4:
Maintains high cutting edge positional accuracy through the use of a special alloy, thereby achieving high precision machining
Feature 5:
5 (Axial), -5 (Radial) Rake Angle Dynamic Bar Coolant-Through Boring Bar
ANSI Part Number:
E10NSCLPL0812AN
ISO Part Number:
E10N-SCLPL08-12AN
US Stock:
0
Worldwide Stock:
0
Compatible Inserts (Partial):
CPMT2515…, CPMH2515…, CPMB2515…, CPGB2515…
Old Material Number:
8846025
Insert Screw:
SB-3060TR
Wrench (for Insert Screw):
FT-10
[LF] Functional Length (mm):
160.00
[LH] Head Length (mm):
18.00
Product Notes:
Right-hand Insert for Left-hand Toolholder
[DMIN] Minimum Bore Diameter (Decimal Inch):
0.4724
[H] Shank Height (Decimal Inch):
0.3543
[DCON] Connection Diameter (Decimal Inch):
0.3937
[LF] Functional Length (Decimal Inch):
6.2992
[LH] Head Length (Decimal Inch):
0.7087
