E12QSDQCL0716A Left-Hand, Positive Rake, Coolant-Through Boring Bar

E12QSDQCL0716A Left-Hand, Positive Rake, Coolant-Through Boring Bar

SKU:
THC13907
|
UPC:
4960664593446
$486.69
(No reviews yet)
Width:
1.54 (in)
Height:
1.54 (in)
Depth:
14.17 (in)
Current Stock:
Adding to cart… The item has been added
Description
E12QSDQCL0716A Left-Hand, Positive Rake, Dynamic Bar Coolant-Through Boring Bar with 107.5 Degree Lead Angle and 16.00mm Minimum Bore Dia.
Additional Information
Tool Style:
E...SDQC-A
Material:
Steel/Carbide
Bar Type:
Carbide Shank
Application:
Copying
Hand:
Left-Hand
Rake:
Positive

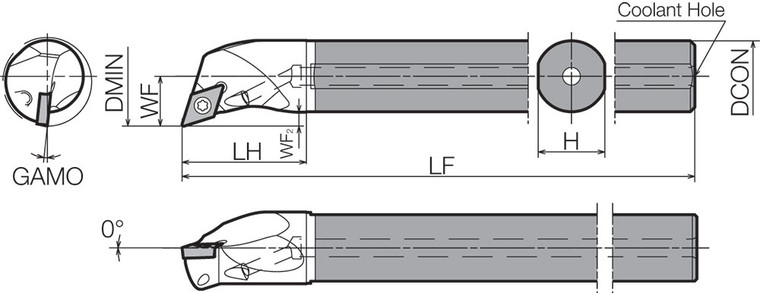

[KAPR] Tool Entering Angle (Degree):
107.5
Insert Shape:
55 Degree Diamond
[DMIN] Minimum Bore Diameter (mm):
16.00
[H] Shank Height (mm):
11.00
[DCON] Connection Diameter (mm):
12.00
Coolant Through (Yes/No):
Yes
Insert Holding Method:
Screw
Unit (inch/mm):
mm
Feature 1:
Maximum structural thickness for higher toolholder rigidity and controlled chattering for stable machining
Feature 2:
Large chip pocket provides superior chip evacuation
Feature 3:
Anti-chatter vibration performance
Feature 4:
Maintains high cutting edge positional accuracy through the use of a special alloy, thereby achieving high precision machining
Feature 5:
0 (Axial), -8 (Radial) Rake Angle Dynamic Bar Coolant-Through Boring Bar
ANSI Part Number:
E12QSDQCL0716A
ISO Part Number:
E12Q-SDQCL07-16A
US Stock:
0
Worldwide Stock:
11
Compatible Inserts (Partial):
DCGT215…, DCMX215…, DCMT215…, DCET215…, DCMW215…
Old Material Number:
8829304
Insert Screw:
SB-2560TR
Wrench (for Insert Screw):
FT-8
[LF] Functional Length (mm):
180.00
[LH] Head Length (mm):
23.00
Product Notes:
Right-hand Insert for Left-hand Toolholder
[DMIN] Minimum Bore Diameter (Decimal Inch):
0.6299
[H] Shank Height (Decimal Inch):
0.4331
[DCON] Connection Diameter (Decimal Inch):
0.4724
[LF] Functional Length (Decimal Inch):
7.0866
[LH] Head Length (Decimal Inch):
0.9055
