E16XSWUPR1118A12 Right-Hand, Positive Rake, Coolant-Through Boring Bar

E16XSWUPR1118A12 Right-Hand, Positive Rake, Coolant-Through Boring Bar

SKU:
THC13802
|
UPC:
4960664592760
$565.58
(No reviews yet)
Width:
1.54 (in)
Height:
1.54 (in)
Depth:
8.27 (in)
Current Stock:
Adding to cart… The item has been added
Description
E16XSWUPR1118A12 Right-Hand, Positive Rake, Dynamic Bar Coolant-Through Boring Bar with 93 Degree Lead Angle and 18.00mm Minimum Bore Dia.
Additional Information
Tool Style:
E...SWUP-A
Material:
Steel/Carbide
Bar Type:
Carbide Shank
Application:
Boring
Hand:
Right-Hand
Rake:
Positive

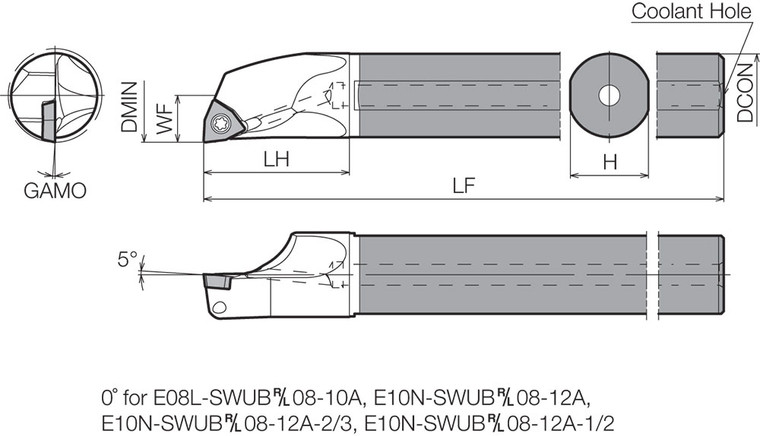

[KAPR] Tool Entering Angle (Degree):
93
Insert Shape:
80 Degree Trigon
[DMIN] Minimum Bore Diameter (mm):
18.00
[H] Shank Height (mm):
15.00
[DCON] Connection Diameter (mm):
16.00
Coolant Through (Yes/No):
Yes
Insert Holding Method:
Screw
Unit (inch/mm):
mm
Feature 1:
Maximum structural thickness for higher toolholder rigidity and controlled chattering for stable machining
Feature 2:
Large chip pocket provides superior chip evacuation
Feature 3:
Anti-chatter vibration performance
Feature 4:
Maintains high cutting edge positional accuracy through the use of a special alloy, thereby achieving high precision machining
Feature 5:
5 (Axial), -1 (Radial) Rake Angle Dynamic Bar Coolant-Through Boring Bar
ANSI Part Number:
E16XSWUPR1118A12
ISO Part Number:
E16X-SWUPR11-18A-1/2
US Stock:
0
Worldwide Stock:
0
Compatible Inserts (Partial):
WPMT215…, WPGW215…
Old Material Number:
8829272
Insert Screw:
SB-2545TR
Wrench (for Insert Screw):
FT-8
[LF] Functional Length (mm):
110.00
[LH] Head Length (mm):
28.00
Product Notes:
Left-hand Insert for Right-hand Toolholder
[DMIN] Minimum Bore Diameter (Decimal Inch):
0.7087
[H] Shank Height (Decimal Inch):
0.5906
[DCON] Connection Diameter (Decimal Inch):
0.6299
[LF] Functional Length (Decimal Inch):
4.3307
[LH] Head Length (Decimal Inch):
1.1024
