E25TSCLCR0927A Right-Hand, Positive Rake, Coolant-Through Boring Bar
$1,508.59
(No reviews yet)
Write a Review
E25TSCLCR0927A Right-Hand, Positive Rake, Coolant-Through Boring Bar
E25TSCLCR0927A Right-Hand, Positive Rake, Dynamic Bar Coolant-Through Boring Bar with 95 Degree Lead Angle and 27.00mm Minimum Bore Dia.
- Tool Style:
- E...SCLC-A
- Material:
- Steel/Carbide
- Bar Type:
- Carbide Shank
- Application:
- Boring|Internal Facing
- Hand:
- Right-Hand
- Rake:
- Positive

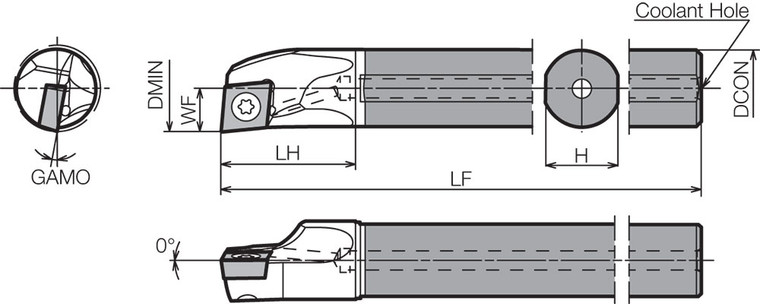

- [KAPR] Tool Entering Angle (Degree):
- 95
- Insert Shape:
- 80 Degree Diamond
- [DMIN] Minimum Bore Diameter (mm):
- 27.00
- [H] Shank Height (mm):
- 24.00
- [DCON] Connection Diameter (mm):
- 25.00
- Coolant Through (Yes/No):
- Yes
- Insert Holding Method:
- Screw
- Unit (inch/mm):
- mm
- Feature 1:
- Maximum structural thickness for higher toolholder rigidity and controlled chattering for stable machining
- Feature 2:
- Large chip pocket provides superior chip evacuation
- Feature 3:
- Anti-chatter vibration performance
- Feature 4:
- Maintains high cutting edge positional accuracy through the use of a special alloy, thereby achieving high precision machining
- Feature 5:
- 0 (Axial), -6 (Radial) Rake Angle Dynamic Bar Coolant-Through Boring Bar
- ANSI Part Number:
- E25TSCLCR0927A
- ISO Part Number:
- E25T-SCLCR09-27A
- US Stock:
- 0
- Worldwide Stock:
- 0
- Compatible Inserts (Partial):
- CCGT325…, CCMT325…, CCET325…, CCGW325…, CCMW325…
- Old Material Number:
- 8828566
- Insert Screw:
- SB-4065TR
- Wrench (for Insert Screw):
- FT-15
- [LF] Functional Length (mm):
- 300.00
- [LH] Head Length (mm):
- 38.00
- Product Notes:
- Left-hand Insert for Right-hand Toolholder
- [DMIN] Minimum Bore Diameter (Decimal Inch):
- 1.0630
- [H] Shank Height (Decimal Inch):
- 0.9449
- [DCON] Connection Diameter (Decimal Inch):
- 0.9843
- [LF] Functional Length (Decimal Inch):
- 11.8110
- [LH] Head Length (Decimal Inch):
- 1.4961
