EM 15002000LE Long Edge Shank, 90 Degree End Mill

EM 15002000LE Long Edge Shank, 90 Degree End Mill

SKU:
OTM86414
$783.25
(No reviews yet)
Width:
2.00 (in)
Height:
2.00 (in)
Depth:
5.00 (in)
Current Stock:
Adding to cart… The item has been added
Description
EM 15002000LE Long Edge, Cylindrical Shank, 2 Flute, 90 Degree End Mill with a 1.5000" Cutting Diameter for Shouldering, Facing, Slotting Applications
Additional Information
Tool Style:
EM
Material:
Steel
Application:
Facing|Shouldering|Slotting
Hand:
Right-Hand

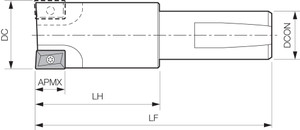

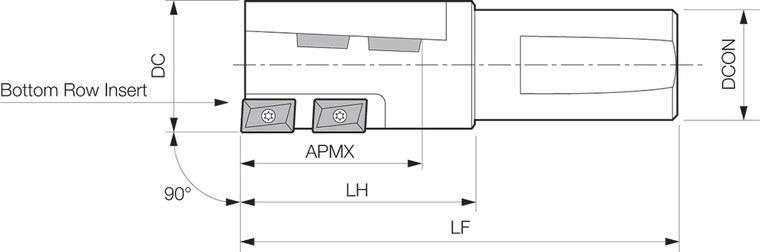

[KAPR] Tool Entering Angle (Degree):
90
[DCN] Cutting Diameter Minimum (mm):
38.10
[DCX] Cutting Diameter Maximum (mm):
38.10
[APMX] Maximum Depth of Cut (Decimal Inch):
2.0000
[APMX] Maximum Depth of Cut (mm):
50.80
Number of Inserts:
8
Number of Flutes:
2
Shank Type:
Standard Length
Weldon Flat:
No
[DCON] Connection Diameter (mm):
31.75
Coolant Through (Yes/No):
No
Insert Holding Method:
Screw
Unit (inch/mm):
inch
Feature 1:
Right-Hand, Long Edge, 90 Lead Angle End Mill
Feature 2:
Shouldering, Facing, Slotting Applications
Feature 3:
Compatible with XPMT15T3… (Bottom Pockets), XPMT15T308 (Side Pockets) Inserts
ANSI Part Number:
EM15002000LE
ISO Part Number:
EM15002000LE
US Stock:
0
Worldwide Stock:
0
Compatible Inserts (Partial):
XPMT15T3… (Bottom Pockets), XPMT15T308 (Side Pockets)
Old Material Number:
8601020
Insert Screw:
SCR-30
Wrench (for Insert Screw):
T10
[LF] Functional Length (mm):
124.71
[LH] Head Length (mm):
66.80
[DC] Cutting Diameter (Decimal Inch):
1.5000
[DC] Cutting Diameter (mm):
38.10
[DCN] Cutting Diameter Minimum (Decimal Inch):
1.5000
[DCX] Cutting Diameter Maximum (Decimal Inch):
1.5000
[DCON] Connection Diameter (Decimal Inch):
1.2500
[LF] Functional Length (Decimal Inch):
4.9099
[LH] Head Length (Decimal Inch):
2.6299
