EM 1500AL Standard Length Shank, 90 Degree End Mill

EM 1500AL Standard Length Shank, 90 Degree End Mill

SKU:
OTM86416
$249.96
(No reviews yet)
Width:
2.00 (in)
Height:
2.00 (in)
Depth:
5.00 (in)
Current Stock:
Adding to cart… The item has been added
Description
EM 1500AL Standard Length, Cylindrical Shank, 2 Flute, 90 Degree End Mill with a 1.5000" Cutting Diameter for Shouldering, Facing, Slotting, Ramping Applications
Additional Information
Tool Style:
EM
Material:
Steel
Application:
Facing|Ramping|Shouldering|Slotting
Hand:
Right-Hand

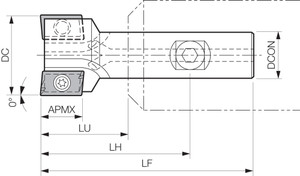

[KAPR] Tool Entering Angle (Degree):
90
[DCN] Cutting Diameter Minimum (mm):
38.10
[DCX] Cutting Diameter Maximum (mm):
38.10
[APMX] Maximum Depth of Cut (Decimal Inch):
0.6400
[APMX] Maximum Depth of Cut (mm):
16.26
[LU] Usable Length (mm):
44.20
Number of Inserts:
2
Number of Flutes:
2
Shank Type:
Standard Length
Weldon Flat:
No
[DCON] Connection Diameter (mm):
25.40
Coolant Through (Yes/No):
No
Insert Holding Method:
Screw
Unit (inch/mm):
inch
Feature 1:
Right-Hand, Standard Length, 90 Lead Angle End Mill
Feature 2:
Shouldering, Facing, Slotting, Ramping Applications
Feature 3:
Compatible with APET1604… Inserts
ANSI Part Number:
EM1500AL
ISO Part Number:
EM1500AL
US Stock:
0
Worldwide Stock:
0
Compatible Inserts (Partial):
APET1604…
Old Material Number:
8601022
Insert Screw:
SCR-02
Wrench (for Insert Screw):
T15
[LF] Functional Length (mm):
101.60
[LH] Head Length (mm):
72.75
[DC] Cutting Diameter (Decimal Inch):
1.5000
[DC] Cutting Diameter (mm):
38.10
[DCN] Cutting Diameter Minimum (Decimal Inch):
1.5000
[DCX] Cutting Diameter Maximum (Decimal Inch):
1.5000
[LU] Usable Length (Decimal Inch):
1.7402
[DCON] Connection Diameter (Decimal Inch):
1.0000
[LF] Functional Length (Decimal Inch):
4.0000
[LH] Head Length (Decimal Inch):
2.8642
