EZH 02516HP100, Adjustable Micro Bar Sleeve
$191.35
(No reviews yet)
Write a Review
EZH 02516HP100, Adjustable Micro Bar Sleeve

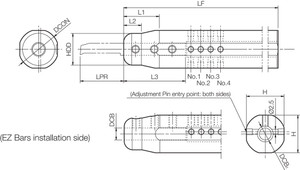

EZH 02516HP100 Adjustable Micro Bar Sleeve with a 16.00mm Shank Diameter and a 2.50mm Compatible Bar Diameter
- Tool Style:
- EZH-HP
- Material:
- Steel
- Application:
- Micro Back Boring|Micro Boring|Micro Internal Face Grooving|Micro Internal Grooving|Micro Internal Profiling|Micro Internal Threading
- [DCB] Connection Bore Diameter (mm):
- 2.50
- [H] Shank Height (mm):
- 15.00
- Shank Type:
- Straight / Cylindrical
- [DCON] Connection Diameter (mm):
- 16.00
- Coolant Through (Yes/No):
- No
- Insert Holding Method:
- Screw
- Unit (inch/mm):
- mm
- Adjustable Bar (Yes/No):
- Yes
- Feature 1:
- The EZ Bar system prevents deviation with high-rigidity clamping
- Feature 2:
- Easy adjustment and high precision for a wide range of applications
- Feature 3:
- Compatible with EZBR…025…, EZTR…025-… style micro bars
- ANSI Part Number:
- EZH02516HP100
- ISO Part Number:
- EZH02516HP-100
- Old Material Number:
- 8836671
- Clamp Screw:
- HS3X4P (for Bar), HS3X4P (for Adjustment Pin)
- Adjustment Pin:
- LCP025140
- Wrench (for Clamp Screw):
- LW-1.5 (for Bar), LW-1.5 (for Adjustment Pin clamp screw)
- Tightening Torque:
- 1 Nm for bar screw and 1 Nm for adjustment pin screw
- Compatible Bars (Partial):
- EZB...025…, EZT...025...
- [LF] Functional Length (mm):
- 100.00
- [LH] Head Length (mm):
- 16.00
- [DCB] Connection Bore Diameter (Decimal Inch):
- 0.0984
- [H] Shank Height (Decimal Inch):
- 0.5906
- [DCON] Connection Diameter (Decimal Inch):
- 0.6299
- [LF] Functional Length (Decimal Inch):
- 3.9370
- [LH] Head Length (Decimal Inch):
- 0.6299
