EZH 03020CT120, Adjustable Coolant-Through Micro Bar Sleeve

EZH 03020CT120, Adjustable Coolant-Through Micro Bar Sleeve

SKU:
THC14486
|
UPC:
4960664672608
$251.62
(No reviews yet)
Width:
1.38 (in)
Height:
1.14 (in)
Depth:
5.91 (in)
Current Stock:
Adding to cart… The item has been added
Description
EZH 03020CT120 Adjustable Coolant-Through Micro Bar Sleeve with a 20.00mm Shank Diameter and a 3.00mm Compatible Bar Diameter

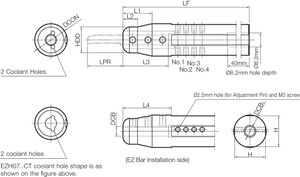

Additional Information
Tool Style:
EZH-CT
Material:
Steel
Application:
Micro Back Boring|Micro Boring|Micro Internal Face Grooving|Micro Internal Grooving|Micro Internal Profiling|Micro Internal Threading
[DCB] Connection Bore Diameter (mm):
3.00
[H] Shank Height (mm):
19.00
[DCON] Connection Diameter (mm):
20.00
Coolant Through (Yes/No):
Yes
Insert Holding Method:
Screw
Unit (inch/mm):
mm
Adjustable Bar (Yes/No):
Yes
Feature 1:
The EZ Bar system prevents deviation with high-rigidity clamping
Feature 2:
EZ Adjust structure with coolant holes
Feature 3:
Unique head design provides a smooth supply of coolant
Feature 4:
Easy adjustment and high precision for a wide range of applications
Feature 5:
Compatible with EZBR...030..., EZVBR035030-..., EZGR...030-..., EZTR...030-... style micro bars
ANSI Part Number:
EZH03020CT120
ISO Part Number:
EZH03020CT-120
US Stock:
6
Worldwide Stock:
2
Old Material Number:
8838059
Clamp Screw:
HS3X4P (for Bar), HS3X4P (for Adjustment Pin and coolant leak prevention)*
Adjustment Pin:
LCP025097*
Wrench (for Clamp Screw):
LW-1.5 (for Bar), LW-1.5 (for Adjustment Pin clamp screw)
Tightening Torque:
1 Nm for bar screw and 1 Nm for adjustment pin screw
Compatible Bars (Partial):
EZB…030…, EZV…030…, EZG…030…, EZT…030…
Shank Type:
Straight / Cylindrical
[LF] Functional Length (mm):
120.00
[LH] Head Length (mm):
16.00
Product Notes 1:
*Use (9) clamp screws - (2) HS3X4P for Adjustment Pin, (4) HS3X4P for coolant leak prevention, (3) HS4X4P for bar.
[DCB] Connection Bore Diameter (Decimal Inch):
0.1181
[H] Shank Height (Decimal Inch):
0.7480
[DCON] Connection Diameter (Decimal Inch):
0.7874
[LF] Functional Length (Decimal Inch):
4.7244
[LH] Head Length (Decimal Inch):
0.6299
