EZH 080254ST120, Micro Bar Sleeve

EZH 080254ST120, Micro Bar Sleeve

SKU:
THC14631
|
UPC:
4960664808762
$196.90
(No reviews yet)
Width:
1.58 (in)
Height:
1.38 (in)
Depth:
5.91 (in)
Current Stock:
Adding to cart… The item has been added
Description
EZH 080254ST120 Micro Bar Sleeve with a 25.40mm Shank Diameter and a 8.00mm Compatible Bar Diameter
Additional Information
Tool Style:
EZH-ST
Material:
Steel
Application:
Micro Back Boring|Micro Boring|Micro Internal Face Grooving|Micro Internal Grooving|Micro Internal Profiling|Micro Internal Threading

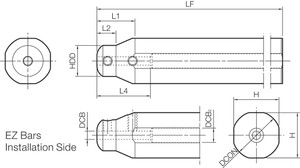

[DCB] Connection Bore Diameter (mm):
8.00
[H] Shank Height (mm):
24.40
[DCON] Connection Diameter (mm):
25.40
Coolant Through (Yes/No):
No
Insert Holding Method:
Screw
Unit (inch/mm):
mm
Adjustable Bar (Yes/No):
No
Feature 1:
The EZ Bar system prevents deviation with high-rigidity clamping
Feature 2:
Easy adjustment and high precision for a wide range of applications
Feature 3:
Non-adjustable cost-effective option
Feature 4:
Compatible with ...080X-…-100EZP style micro bars
ANSI Part Number:
EZH080254ST120
ISO Part Number:
EZH08025.4ST-120
US Stock:
0
Worldwide Stock:
0
Old Material Number:
8859107
Clamp Screw:
HS4X4P
Wrench (for Clamp Screw):
LW-2
Tightening Torque:
1 Nm
Compatible Bars (Partial):
EZB…080…, …080X-…090EZP
Shank Type:
Straight / Cylindrical
[LF] Functional Length (mm):
120.00
[LH] Head Length (mm):
18.00
[DCB] Connection Bore Diameter (Decimal Inch):
0.3150
[H] Shank Height (Decimal Inch):
0.9606
[DCON] Connection Diameter (Decimal Inch):
1.0000
[LF] Functional Length (Decimal Inch):
4.7244
[LH] Head Length (Decimal Inch):
0.7087
