EZVBR 065060010 PR1225 Grade PVD Carbide, Micro Boring Bar

EZVBR 065060010 PR1225 Grade PVD Carbide, Micro Boring Bar

SKU:
TKB08365
|
UPC:
4960664737963
$72.29
(No reviews yet)
Width:
1.02 (in)
Height:
0.63 (in)
Depth:
3.82 (in)
Current Stock:
Adding to cart… The item has been added
Description
EZVBR 065060010 PR1225 Grade, Right-Hand, Micro Bar with a 6.50mm Minimum Bore Diameter for (P) Steel Boring, Internal Spherical Machining, Internal Facing, and Micro Internal Profiling Applications
Additional Information

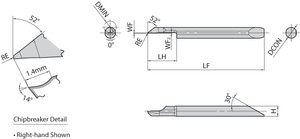

Tool Style:
EZVB
Insert Grade:
PR1225
Material:
Carbide
Coating Process:
PVD
[RE] Corner Radius (mm):
0.10
Application:
Internal Facing|Internal Spherical Machining|Micro Boring|Micro Internal Profiling
Hand:
Right-Hand
[KAPR] Tool Entering Angle (Degree):
142
[LU] Usable Length (mm):
14.00
Primary Workpiece Material:
(P) Steel
[DMIN] Minimum Bore Diameter (mm):
6.50
[H] Shank Height (mm):
5.80
[DCON] Connection Diameter (mm):
6.00
Insert Holding Method:
Screw
Unit (inch/mm):
mm
Feature 1:
Adjustable overhang length (EZ Adjust Structure)
Feature 2:
Minimized deviation of the cutting diameter
Feature 3:
Various EZ Bar sizes and styles for a wide range of small internal machining applications
Feature 4:
Internal profiling and facing style
Feature 5:
Compatible with EZH060… style sleeves
ANSI Part Number:
EZVBR065060010PR1225
ISO Part Number:
EZVBR065060-010
US Stock:
5
Worldwide Stock:
73
Old Material Number:
8843956
Compatible Toolholder (Partial):
EZH060…
[LF] Functional Length (mm):
55.20
[RE] Corner Radius:
0.004"
[LU] Usable Length (Decimal Inch):
0.5512
[DMIN] Minimum Bore Diameter (Decimal Inch):
0.2559
[H] Shank Height (Decimal Inch):
0.2284
[DCON] Connection Diameter (Decimal Inch):
0.2362
[LF] Functional Length (Decimal Inch):
2.1732
