FM 200030RH Inch Bore Diameter, 30 Degree Face Mill
$358.30
(No reviews yet)
Write a Review
FM 200030RH Inch Bore Diameter, 30 Degree Face Mill

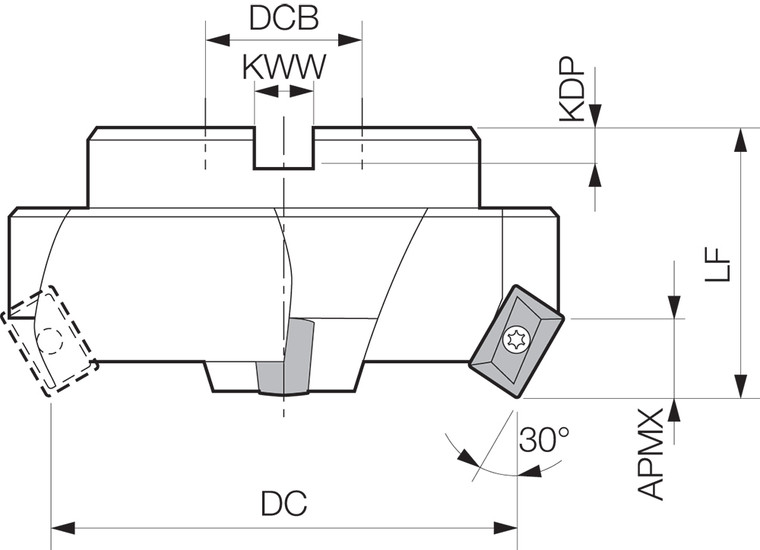

FM 200030RH Inch Bore Diameter, Standard Pitch, 3 Flute, 30 Degree Face Mill with a 2.0000" Cutting Diameter for Shouldering, Facing, Chamfering Applications
- Tool Style:
- FM
- Material:
- Steel
- Application:
- Chamfering|Facing|Shouldering
- Hand:
- Right-Hand
- [KAPR] Tool Entering Angle (Degree):
- 30
- [DCN] Cutting Diameter Minimum (mm):
- 50.80
- [DCX] Cutting Diameter Maximum (mm):
- 50.80
- [APMX] Maximum Depth of Cut (Decimal Inch):
- 0.5000
- [APMX] Maximum Depth of Cut (mm):
- 12.70
- Cutter Pitch:
- Standard Pitch
- Number of Inserts:
- 3
- Number of Flutes:
- 3
- Bore Diameter (Inch/Metric):
- Inch
- [DCB] Connection Bore Diameter (mm):
- 25.40
- Coolant Through (Yes/No):
- No
- Insert Holding Method:
- Screw
- Unit (inch/mm):
- inch
- Feature 1:
- 30 Degree Lead Angle Face Mill
- Feature 2:
- Application: Shouldering, Facing, Chamfering
- Feature 3:
- General purpose 30 degree milling cutter
- Feature 4:
- Compatible with (3) XPMT15T3… style inserts
- ANSI Part Number:
- FM200030RH
- ISO Part Number:
- FM-2000-30-RH
- US Stock:
- 0
- Worldwide Stock:
- 0
- Compatible Inserts (Partial):
- XPMT15T3…
- Old Material Number:
- 8601028
- [LF] Functional Length (mm):
- 34.13
- [DC] Cutting Diameter (Decimal Inch):
- 2.0000
- [DC] Cutting Diameter (mm):
- 50.80
- [DCN] Cutting Diameter Minimum (Decimal Inch):
- 2.0000
- [DCX] Cutting Diameter Maximum (Decimal Inch):
- 2.0000
- [DCB] Connection Bore Diameter (Decimal Inch):
- 1.0000
- [LF] Functional Length (Decimal Inch):
- 1.3437
