GBA 32L150020 TN90 Grade Uncoated Cermet, Indexable Grooving Insert
$32.77
(No reviews yet)
Write a Review
GBA 32L150020 TN90 Grade Uncoated Cermet, Indexable Grooving Insert
GBA 32L150020 TN90 Grade Uncoated Cermet, 1.50mm Groove Width, Left-Hand Grooving Insert for Continuous and Finishing-Medium in (P) Steel and (M) Stainless Steel
- Tool Style:
- GBA
- Insert Size:
- 32
- Insert Grade:
- TN90
- Material:
- Cermet
- Coating Process:
- Uncoated

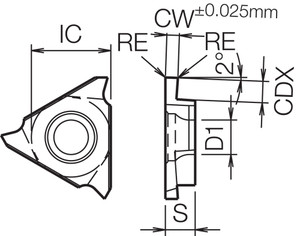

- [IC] Inscribed Circle (mm):
- 9.525
- [S] Thickness (mm):
- 3.18
- [RE] Corner Radius (mm):
- 0.20
- Application:
- External Grooving
- Hand:
- Left-Hand
- Rake:
- Positive
- [CDX] Max Depth of Cut (mm):
- 2.00
- [CWN] Cutting Width Minimum (mm):
- 1.50
- [CWX] Cutting Width Maximum (mm):
- 1.50
- Primary Workpiece Material:
- (P) Steel
- Full Radius:
- No
- Number of Cutting Edges:
- 3
- Usage Classification:
- Continuous
- Cutting Range:
- Finishing-Medium
- Insert Holding Method:
- Screw or Clamp
- Unit (inch/mm):
- mm
- Feature 1:
- Insert for External Grooving
- Feature 2:
- 3 Cutting Edges
- Feature 3:
- Cermet with great surface finish eliminates many secondary operations
- Feature 4:
- Application: For grooving and cut-off of steel
- ANSI Part Number:
- GBA32L150020TN90
- ISO Part Number:
- GBA32L150-020
- Old Material Number:
- 8810660
- Compatible Toolholder (Partial):
- KGBAL…-3, KGBAL…-16, KGBASR…-3, KGBASR…-16, KIGBAR…-3, KIGBAR…-16
- [IC] Inscribed Circle:
- 3/8"
- [S] Thickness:
- 1/8"
- [RE] Corner Radius:
- 0.008"
- [CW] Cutting Width (Decimal Inch):
- 0.0591
- [CW] Cutting Width (mm):
- 1.50
- [CDX] Max Depth of Cut (Decimal Inch):
- 0.0787
- [CWN] Cutting Width Minimum (Decimal Inch):
- 0.0591
- [CWX] Cutting Width Maximum (Decimal Inch):
- 0.0591
