GBA 32L225020 PR1625 Grade PVD Carbide, Indexable Grooving Insert

GBA 32L225020 PR1625 Grade PVD Carbide, Indexable Grooving Insert

SKU:
TLL17151
|
UPC:
4960664897650
$38.70
(No reviews yet)
Width:
1.77 (in)
Height:
0.39 (in)
Depth:
4.13 (in)
Current Stock:
Adding to cart… The item has been added
Description
GBA 32L225020 PR1625 Grade PVD Carbide, 2.25mm Groove Width, Left-Hand Grooving Insert for Light Interruption and Medium-Roughing in (P) Steel and (M) Stainless Steel
Additional Information
Tool Style:
GBA
Insert Size:
32
Insert Grade:
PR1625
Material:
Carbide
Coating Process:
PVD

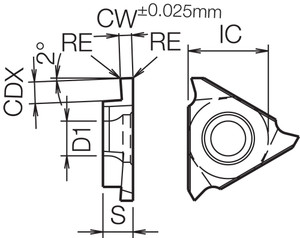

[IC] Inscribed Circle (mm):
9.525
[S] Thickness (mm):
3.18
[RE] Corner Radius (mm):
0.20
Application:
External Grooving
Hand:
Left-Hand
Rake:
Positive
[CDX] Max Depth of Cut (mm):
2.50
[CWN] Cutting Width Minimum (mm):
2.25
[CWX] Cutting Width Maximum (mm):
2.25
Primary Workpiece Material:
(P) Steel
Full Radius:
No
Number of Cutting Edges:
3
Usage Classification:
Light Interruption
Cutting Range:
Medium-Roughing
Insert Holding Method:
Screw or Clamp
Unit (inch/mm):
mm
Feature 1:
Insert for External Grooving
Feature 2:
3 Cutting Edges
Feature 3:
Nano thin multi-layer coating MEGACOAT NANO for superior wear resistance and high oxidation resistance
Feature 4:
Application: Stable machining and long tool life when grooving steel and stainless steel
ANSI Part Number:
GBA32L225020PR1625
ISO Part Number:
GBA32L225-020
US Stock:
0
Worldwide Stock:
0
Old Material Number:
8864375
Compatible Toolholder (Partial):
KGBAL…-3, KGBAL…-16, KGBASR…-3, KGBASR…-16, KIGBAR…-3, KIGBAR…-16
[IC] Inscribed Circle:
3/8"
[S] Thickness:
1/8"
[RE] Corner Radius:
0.008"
[CW] Cutting Width (Decimal Inch):
0.0886
[CW] Cutting Width (mm):
2.25
[CDX] Max Depth of Cut (Decimal Inch):
0.0984
[CWN] Cutting Width Minimum (Decimal Inch):
0.0886
[CWX] Cutting Width Maximum (Decimal Inch):
0.0886
