GBA 32R02 PR930 Grade PVD Carbide, Indexable Grooving Insert

GBA 32R02 PR930 Grade PVD Carbide, Indexable Grooving Insert

SKU:
TKT89005
|
UPC:
4960664392551
$43.72
(No reviews yet)
Width:
1.77 (in)
Height:
0.39 (in)
Depth:
4.13 (in)
Current Stock:
Adding to cart… The item has been added
Description
GBA 32R02 PR930 Grade PVD Carbide, 0.0311" Groove Width, Right-Hand Grooving Insert for Light Interruption and Finishing-Medium in (P) Steel and (M) Stainless Steel
Additional Information
Tool Style:
GBA
Insert Size:
32
Insert Grade:
PR930
Material:
Carbide
Coating Process:
PVD

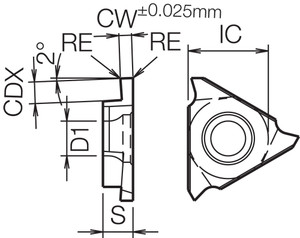

[IC] Inscribed Circle (mm):
9.525
[S] Thickness (mm):
3.18
[RE] Corner Radius (mm):
0.05
Application:
External Grooving
Hand:
Right-Hand
Rake:
Positive
[CDX] Max Depth of Cut (mm):
1.98
[CWN] Cutting Width Minimum (mm):
0.79
[CWX] Cutting Width Maximum (mm):
0.79
Primary Workpiece Material:
(P) Steel
Full Radius:
No
Number of Cutting Edges:
3
Usage Classification:
Light Interruption
Cutting Range:
Finishing-Medium
Insert Holding Method:
Screw or Clamp
Unit (inch/mm):
inch
Feature 1:
Insert for External Grooving
Feature 2:
3 Cutting Edges
Feature 3:
Hard TiCN base PVD coated super micro-grain carbide
Feature 4:
Application: Low cutting speed, precise cutting with sharp edge
ANSI Part Number:
GBA32R02PR930
ISO Part Number:
GBA32R02
US Stock:
0
Worldwide Stock:
0
Old Material Number:
8805080
Compatible Toolholder (Partial):
KGBAR…-3, KGBAR…-16, KGBASL…-3, KGBASL…-16, KIGBAL…-3, KIGBAL…-16
[IC] Inscribed Circle:
3/8"
[S] Thickness:
1/8"
[RE] Corner Radius:
0.002"
[CW] Cutting Width (Decimal Inch):
0.0311
[CW] Cutting Width (mm):
0.79
[CDX] Max Depth of Cut (Decimal Inch):
0.0780
[CWN] Cutting Width Minimum (Decimal Inch):
0.0311
[CWX] Cutting Width Maximum (Decimal Inch):
0.0311
