GBA 32R150010 KPD010 Grade PCD, Indexable Grooving Insert

GBA 32R150010 KPD010 Grade PCD, Indexable Grooving Insert

SKU:
TBE01090
|
UPC:
4960664200474
$172.40
(No reviews yet)
Width:
1.69 (in)
Height:
0.43 (in)
Depth:
2.36 (in)
Current Stock:
Adding to cart… The item has been added
Description
GBA 32R150010 KPD010 Grade PCD, 1.50mm Groove Width, Right-Hand Grooving Insert for Continuous and Finishing in (N) Non-Ferrous Metals and (S) Heat-Resistant Alloy
Additional Information
Tool Style:
GBA
Insert Size:
32
Insert Grade:
KPD010
Material:
PCD
Coating Process:
Uncoated

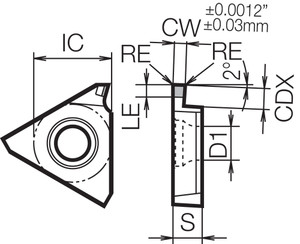

[IC] Inscribed Circle (mm):
9.525
[S] Thickness (mm):
3.18
[RE] Corner Radius (mm):
0.10
Application:
External Grooving|Internal Grooving
Hand:
Right-Hand
Rake:
Positive
[CDX] Max Depth of Cut (mm):
2.00
[CWN] Cutting Width Minimum (mm):
1.50
[CWX] Cutting Width Maximum (mm):
1.50
Primary Workpiece Material:
(N) Non-Ferrous Materials
Full Radius:
No
Number of Cutting Edges:
1
Usage Classification:
Continuous
Cutting Range:
Finishing
Insert Holding Method:
Screw or Clamp
Unit (inch/mm):
mm
Feature 1:
Insert for External Grooving, Internal Grooving
Feature 2:
1-edge
Feature 3:
1 Cutting Edge
Feature 4:
Good wear resistance and toughness, good grindability
Feature 5:
Application: General purpose, high speed cutting of aluminum alloys, non-ferrous metals and non-metals including plastics, fiberglass, carbide and ceramics
ANSI Part Number:
GBA32R150010KPD010
ISO Part Number:
GBA32R150-010
US Stock:
0
Worldwide Stock:
1
Old Material Number:
8810684
Compatible Toolholder (Partial):
KGBAR…-3, KGBAR…-16, KGBASL…-3, KGBASL…-16, KIGBAL…-3, KIGBAL…-16
[IC] Inscribed Circle:
3/8"
[S] Thickness:
1/8"
[RE] Corner Radius:
0.004"
[CW] Cutting Width (Decimal Inch):
0.0591
[CW] Cutting Width (mm):
1.50
[CDX] Max Depth of Cut (Decimal Inch):
0.0787
[CWN] Cutting Width Minimum (Decimal Inch):
0.0591
[CWX] Cutting Width Maximum (Decimal Inch):
0.0591
[LE] CBN/PCD Tip Length (Decimal Inch):
0.0669
[LE] CBN/PCD Tip Length (mm):
1.70
