GBA 43L200100R PR1625 Grade PVD Carbide, Indexable Grooving Insert
$49.51
(No reviews yet)
Write a Review
GBA 43L200100R PR1625 Grade PVD Carbide, Indexable Grooving Insert
GBA 43L200100R PR1625 Grade PVD Carbide, 2.00mm Groove Width, Left-Hand Grooving Insert for Light Interruption and Medium-Roughing in (P) Steel and (M) Stainless Steel
- Tool Style:
- GBA
- Insert Size:
- 43
- Chipbreaker:
- R
- Insert Grade:
- PR1625
- Material:
- Carbide
- Coating Process:
- PVD

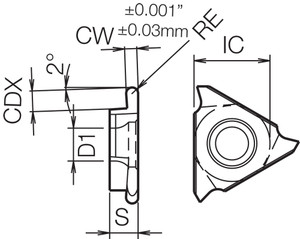

- [IC] Inscribed Circle (mm):
- 12.70
- [S] Thickness (mm):
- 4.76
- [RE] Corner Radius (mm):
- 1.00
- Application:
- External Grooving
- Hand:
- Left-Hand
- Rake:
- Positive
- [CDX] Max Depth of Cut (mm):
- 2.00
- [CWN] Cutting Width Minimum (mm):
- 2.00
- [CWX] Cutting Width Maximum (mm):
- 2.00
- Primary Workpiece Material:
- (P) Steel
- Full Radius:
- Yes
- Number of Cutting Edges:
- 3
- Usage Classification:
- Light Interruption
- Cutting Range:
- Medium-Roughing
- Insert Holding Method:
- Screw or Clamp
- Unit (inch/mm):
- mm
- Feature 1:
- Insert for External Grooving
- Feature 2:
- Molded Chipbreaker, Full-R (Round)
- Feature 3:
- 3 Cutting Edges
- Feature 4:
- Nano thin multi-layer coating MEGACOAT NANO for superior wear resistance and high oxidation resistance
- Feature 5:
- Application: Stable machining and long tool life when grooving steel and stainless steel
- ANSI Part Number:
- GBA43L200100RPR1625
- ISO Part Number:
- GBA43L200-100R
- US Stock:
- 0
- Worldwide Stock:
- 0
- Old Material Number:
- 8860654
- Compatible Toolholder (Partial):
- KGBAL…22-15, KGBASR…22-15, KIGBAR…-22
- [IC] Inscribed Circle:
- 1/2"
- [S] Thickness:
- 3/16"
- [RE] Corner Radius:
- 0.039"
- [CW] Cutting Width (Decimal Inch):
- 0.0787
- [CW] Cutting Width (mm):
- 2.00
- [CDX] Max Depth of Cut (Decimal Inch):
- 0.0787
- [CWN] Cutting Width Minimum (Decimal Inch):
- 0.0787
- [CWX] Cutting Width Maximum (Decimal Inch):
- 0.0787
- Series Description (PeopleSoft):
- GBA Grooving
- Series Description:
- GBA Grooving
