GBA 43L250010 KPD001 Grade PCD, Indexable Grooving Insert

GBA 43L250010 KPD001 Grade PCD, Indexable Grooving Insert

SKU:
TBR21229
|
UPC:
4960664399581
$232.45
(No reviews yet)
Width:
1.69 (in)
Height:
0.43 (in)
Depth:
2.36 (in)
Current Stock:
Adding to cart… The item has been added
Description
GBA 43L250010 KPD001 Grade PCD, 2.50mm Groove Width, Left-Hand Grooving Insert for Continuous and Finishing in (N) Non-Ferrous Metals and (S) Heat-Resistant Alloy
Additional Information
Tool Style:
GBA
Insert Size:
43
Insert Grade:
KPD001
Material:
PCD
Coating Process:
Uncoated

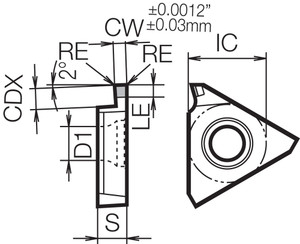

[IC] Inscribed Circle (mm):
12.70
[S] Thickness (mm):
4.76
[RE] Corner Radius (mm):
0.10
Application:
External Grooving|Internal Grooving
Hand:
Left-Hand
Rake:
Positive
[CDX] Max Depth of Cut (mm):
4.00
[CWN] Cutting Width Minimum (mm):
2.50
[CWX] Cutting Width Maximum (mm):
2.50
Primary Workpiece Material:
(N) Non-Ferrous Materials
Full Radius:
No
Number of Cutting Edges:
1
Usage Classification:
Continuous
Cutting Range:
Finishing
Insert Holding Method:
Screw or Clamp
Unit (inch/mm):
mm
Feature 1:
Insert for External Grooving, Internal Grooving
Feature 2:
1-edge
Feature 3:
1 Cutting Edge
Feature 4:
Super Micro-Grain PCD features cutting edge strength, wear resistance, fracture resistance, good edge-sharpening performance and long, stable tool life
Feature 5:
Application: High speed cutting of aluminum alloys, brass, non-ferrous metals and non-metals including plastics, fiberglass, carbide and ceramics
ANSI Part Number:
GBA43L250010KPD001
ISO Part Number:
GBA43L250-010
US Stock:
0
Worldwide Stock:
0
Old Material Number:
8810748
Compatible Toolholder (Partial):
KGBAL…22-25T5, KGBASR…22-25T5, KIGBAR…-4, KIGBAR…-22
[IC] Inscribed Circle:
1/2"
[S] Thickness:
3/16"
[RE] Corner Radius:
0.004"
[CW] Cutting Width (Decimal Inch):
0.0984
[CW] Cutting Width (mm):
2.50
[CDX] Max Depth of Cut (Decimal Inch):
0.1575
[CWN] Cutting Width Minimum (Decimal Inch):
0.0984
[CWX] Cutting Width Maximum (Decimal Inch):
0.0984
[LE] CBN/PCD Tip Length (Decimal Inch):
0.0748
[LE] CBN/PCD Tip Length (mm):
1.90
