GBA 43L300150R PR930 Grade PVD Carbide, Indexable Grooving Insert

GBA 43L300150R PR930 Grade PVD Carbide, Indexable Grooving Insert

SKU:
TKT06645
$65.98
(No reviews yet)
Width:
2.05 (in)
Height:
0.47 (in)
Depth:
4.33 (in)
Current Stock:
Adding to cart… The item has been added
Description
GBA 43L300150R PR930 Grade PVD Carbide, 3.00mm Groove Width, Left-Hand Grooving Insert for Light Interruption and Finishing-Medium in (P) Steel and (M) Stainless Steel
Additional Information
Tool Style:
GBA
Insert Size:
43
Chipbreaker:
R
Insert Grade:
PR930
Material:
Carbide
Coating Process:
PVD

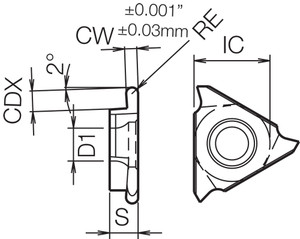

[IC] Inscribed Circle (mm):
12.70
[S] Thickness (mm):
4.76
[RE] Corner Radius (mm):
1.50
Application:
External Grooving
Hand:
Left-Hand
Rake:
Positive
[CDX] Max Depth of Cut (mm):
4.00
[CWN] Cutting Width Minimum (mm):
3.00
[CWX] Cutting Width Maximum (mm):
3.00
Primary Workpiece Material:
(P) Steel
Full Radius:
Yes
Number of Cutting Edges:
3
Usage Classification:
Light Interruption
Cutting Range:
Finishing-Medium
Insert Holding Method:
Screw or Clamp
Unit (inch/mm):
mm
Feature 1:
Insert for External Grooving
Feature 2:
Molded Chipbreaker, Full-R (Round)
Feature 3:
3 Cutting Edges
Feature 4:
Hard TiCN base PVD coated super micro-grain carbide
Feature 5:
Application: Low cutting speed, precise cutting with sharp edge
ANSI Part Number:
GBA43L300150RPR930
ISO Part Number:
GBA43L300-150R
Old Material Number:
8810725
Compatible Toolholder (Partial):
KGBAL…22-25, KGBAL…22-25T5, KGBASR…22-25, KGBASR…22-25T5, KIGBAR…-22
[IC] Inscribed Circle:
1/2"
[S] Thickness:
3/16"
[RE] Corner Radius:
0.059"
[CW] Cutting Width (Decimal Inch):
0.1181
[CW] Cutting Width (mm):
3.00
[CDX] Max Depth of Cut (Decimal Inch):
0.1575
[CWN] Cutting Width Minimum (Decimal Inch):
0.1181
[CWX] Cutting Width Maximum (Decimal Inch):
0.1181
