GBA 43R250030 PR930 Grade PVD Carbide, Indexable Grooving Insert

GBA 43R250030 PR930 Grade PVD Carbide, Indexable Grooving Insert

SKU:
TKT06470
$54.65
(No reviews yet)
Width:
2.05 (in)
Height:
0.47 (in)
Depth:
4.33 (in)
Current Stock:
Adding to cart… The item has been added
Description
GBA 43R250030 PR930 Grade PVD Carbide, 2.50mm Groove Width, Right-Hand Grooving Insert for Light Interruption and Finishing-Medium in (P) Steel and (M) Stainless Steel
Additional Information
Tool Style:
GBA
Insert Size:
43
Insert Grade:
PR930
Material:
Carbide
Coating Process:
PVD

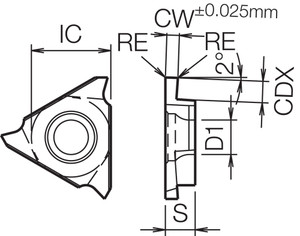

[IC] Inscribed Circle (mm):
12.70
[S] Thickness (mm):
4.76
[RE] Corner Radius (mm):
0.30
Application:
External Grooving
Hand:
Right-Hand
Rake:
Positive
[CDX] Max Depth of Cut (mm):
5.00
[CWN] Cutting Width Minimum (mm):
2.50
[CWX] Cutting Width Maximum (mm):
2.50
Primary Workpiece Material:
(P) Steel
Full Radius:
No
Number of Cutting Edges:
3
Usage Classification:
Light Interruption
Cutting Range:
Finishing-Medium
Insert Holding Method:
Screw or Clamp
Unit (inch/mm):
mm
Feature 1:
Insert for External Grooving
Feature 2:
3 Cutting Edges
Feature 3:
Hard TiCN base PVD coated super micro-grain carbide
Feature 4:
Application: Low cutting speed, precise cutting with sharp edge
ANSI Part Number:
GBA43R250030PR930
ISO Part Number:
GBA43R250-030
Old Material Number:
8805129
Compatible Toolholder (Partial):
KGBAR…22-25T5, KGBASL…22-25T5, KIGBAL…-4, KIGBAL…-22
[IC] Inscribed Circle:
1/2"
[S] Thickness:
3/16"
[RE] Corner Radius:
0.012"
[CW] Cutting Width (Decimal Inch):
0.0984
[CW] Cutting Width (mm):
2.50
[CDX] Max Depth of Cut (Decimal Inch):
0.1969
[CWN] Cutting Width Minimum (Decimal Inch):
0.0984
[CWX] Cutting Width Maximum (Decimal Inch):
0.0984
