GBA 43R300030 PV7040 Grade PVD Cermet, Indexable Grooving Insert

GBA 43R300030 PV7040 Grade PVD Cermet, Indexable Grooving Insert

SKU:
TJB17280
$37.43
(No reviews yet)
Width:
2.05 (in)
Height:
0.47 (in)
Depth:
4.33 (in)
Current Stock:
Adding to cart… The item has been added
Description
GBA 43R300030 PV7040 Grade PVD Cermet, 3.00mm Groove Width, Right-Hand Grooving Insert for Continuous and Finishing in (P) Steel
Additional Information
Tool Style:
GBA
Insert Size:
43
Insert Grade:
PV7040
Material:
Cermet
Coating Process:
PVD

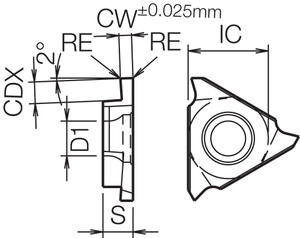

[IC] Inscribed Circle:
1/2"
[IC] Inscribed Circle (mm):
12.70
[S] Thickness:
3/16"
[S] Thickness (mm):
4.76
[RE] Corner Radius:
0.012"
[RE] Corner Radius (mm):
0.30
Application:
External Grooving
Hand:
Right-Hand
Rake:
Positive
[CW] Cutting Width (Decimal Inch):
0.1181
[CW] Cutting Width (mm):
3.00
[CDX] Max Depth of Cut (Decimal Inch):
0.1575
[CDX] Max Depth of Cut (mm):
4.00
[CWN] Cutting Width Minimum (Decimal Inch):
0.1181
[CWN] Cutting Width Minimum (mm):
3.00
[CWX] Cutting Width Maximum (Decimal Inch):
0.1181
[CWX] Cutting Width Maximum (mm):
3.00
Primary Workpiece Material:
(P) Steel
Full Radius:
No
Number of Cutting Edges:
3
Usage Classification:
Continuous
Cutting Range:
Finishing
Insert Holding Method:
Screw or Clamp
Unit (inch/mm):
mm
Feature 1:
Insert for External Grooving
Feature 2:
3 Cutting Edges
Feature 3:
MEGACOAT coating technology on super micro-grain cermet
Feature 4:
Application: Grooving of steel
ANSI Part Number:
GBA43R300030PV7040
ISO Part Number:
GBA43R300-030
Old Material Number:
8836752
Compatible Toolholder (Partial):
KGBAR…4-25, KGBAR…22-25, KGBAR…22-25T5, KGBASL…4-25, KGBASL…22-25, KGBASL…22-25T5, KIGBAL…-4, KIGBAL…-22
