GBF 32L080000F PR1535 Grade PVD Carbide, Indexable Grooving Insert

GBF 32L080000F PR1535 Grade PVD Carbide, Indexable Grooving Insert

SKU:
TLC19917
|
UPC:
4960664871278
$36.88
(No reviews yet)
Width:
1.77 (in)
Height:
0.39 (in)
Depth:
4.13 (in)
Current Stock:
Adding to cart… The item has been added
Description
GBF 32L080000F PR1535 Grade PVD Carbide, 0.80mm Groove Width, Left-Hand Grooving Insert for Light Interruption and Medium-Roughing in (P) Carbon/Alloy Steel and (M) Stainless Steel Material Applications
Additional Information
Tool Style:
GBF
Insert Size:
080
Chipbreaker:
F
Insert Grade:
PR1535
Material:
Carbide
Coating Process:
PVD

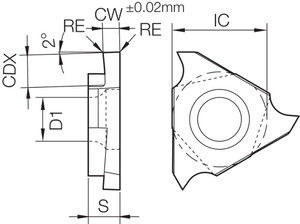

[IC] Inscribed Circle (mm):
9.525
[S] Thickness (mm):
3.18
[RE] Corner Radius (mm):
0.00
Application:
External Grooving
Hand:
Left-Hand
Rake:
Positive
[CDX] Max Depth of Cut (mm):
2.00
[CWN] Cutting Width Minimum (mm):
0.80
[CWX] Cutting Width Maximum (mm):
0.80
Primary Workpiece Material:
(S) Heat-Resistant Alloy
Full Radius:
No
Number of Cutting Edges:
3
Usage Classification:
Light Interruption
Cutting Range:
Medium-Roughing
Insert Holding Method:
Screw
Unit (inch/mm):
mm
Feature 1:
Insert for External Grooving
Feature 2:
3 Cutting Edges
Feature 3:
Stabilized turning operations and long tool life with MEGACOAT NANO coating technology
Feature 4:
Application: PVD for carbon/alloy steel and stainless steel
ANSI Part Number:
GBF32L080000FPR1535
ISO Part Number:
GBF32L080-000F
US Stock:
0
Worldwide Stock:
0
Old Material Number:
8867464
Compatible Toolholder (Partial):
KGBFL…16F, S…KGBFL16, KGBFSL…16, KGBFL…-16FJCT(M)
[IC] Inscribed Circle:
3/8"
[S] Thickness:
1/8"
[RE] Corner Radius:
0.000"
[CW] Cutting Width (Decimal Inch):
0.0315
[CW] Cutting Width (mm):
0.80
[CDX] Max Depth of Cut (Decimal Inch):
0.0787
[CWN] Cutting Width Minimum (Decimal Inch):
0.0315
[CWX] Cutting Width Maximum (Decimal Inch):
0.0315
