GDFM 5020N040DM PR1215 Grade PVD Carbide, Indexable Grooving Insert
$34.89
(No reviews yet)
Write a Review
GDFM 5020N040DM PR1215 Grade PVD Carbide, Indexable Grooving Insert
GDFM 5020N040DM PR1215 Grade PVD Carbide, 5.00mm Groove Width, Neutral Grooving Insert for Continuous and Medium in (P) Steel and (M) Stainless Steel
- Tool Style:
- GDFM
- Insert Size:
- 5020
- Chipbreaker:
- DM
- Insert Grade:
- PR1215
- Material:
- Carbide
- Coating Process:
- PVD

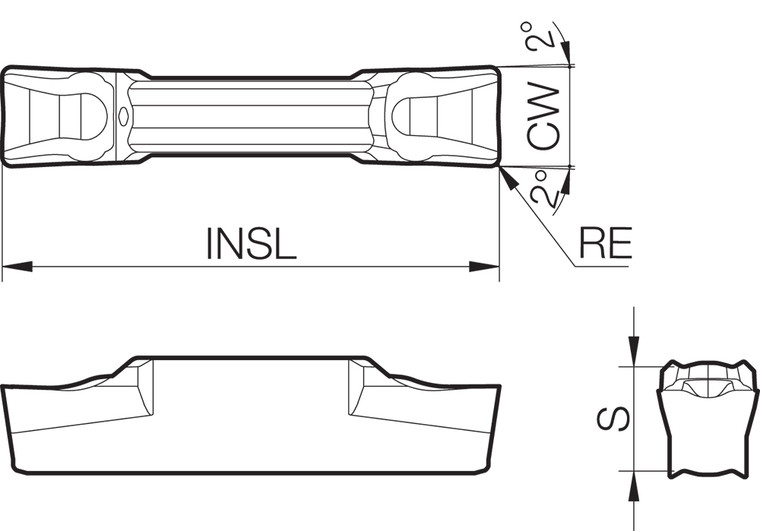

- [S] Thickness (mm):
- 4.50
- [RE] Corner Radius (mm):
- 0.40
- [INSL] Insert Length (mm):
- 20.00
- Application:
- Deep Face Grooving|Face Grooving|Traversing
- Hand:
- Neutral
- Rake:
- Positive
- [CDX] Max Depth of Cut (mm):
- 32.00
- [CWN] Cutting Width Minimum (mm):
- 5.00
- [CWX] Cutting Width Maximum (mm):
- 5.00
- Primary Workpiece Material:
- (P) Steel
- Full Radius:
- No
- Number of Cutting Edges:
- 2
- Usage Classification:
- Continuous
- Cutting Range:
- Medium
- Insert Holding Method:
- Clamp
- Unit (inch/mm):
- mm
- Feature 1:
- Insert for Deep Grooving, Traversing
- Feature 2:
- 2 Cutting Edges
- Feature 3:
- Superior wear and oxidation-resistant MEGACOAT on micro-grain carbide substrate
- Feature 4:
- Application: Superior adhesion-resistant and long tool life for steel and stainless steel cutting
- ANSI Part Number:
- GDFM5020N040DMPR1215
- ISO Part Number:
- GDFM5020N-040DM
- US Stock:
- 10
- Worldwide Stock:
- 220
- Old Material Number:
- 8834511
- Compatible Toolholder (Partial):
- KGDFR…-5...-C, KGDFL…-5...-C
- [S] Thickness:
- 0.177"
- [RE] Corner Radius:
- 1/64"
- [INSL] Insert Length (Decimal Inch):
- 0.7874
- [CW] Cutting Width (Decimal Inch):
- 0.1969
- [CW] Cutting Width (mm):
- 5.00
- [CDX] Max Depth of Cut (Decimal Inch):
- 1.2598
- [CWN] Cutting Width Minimum (Decimal Inch):
- 0.1969
- [CWX] Cutting Width Maximum (Decimal Inch):
- 0.1969
