GDFM 6020N040DM PR1225 Grade PVD Carbide, Indexable Grooving Insert

GDFM 6020N040DM PR1225 Grade PVD Carbide, Indexable Grooving Insert

SKU:
TKE10837
|
UPC:
4960664634255
$39.19
(No reviews yet)
Width:
1.77 (in)
Height:
0.59 (in)
Depth:
4.13 (in)
Current Stock:
Adding to cart… The item has been added
Description
GDFM 6020N040DM PR1225 Grade PVD Carbide, 6.00mm Groove Width, Neutral Grooving Insert for Continuous and Medium-Roughing in (P) Steel and (M) Stainless Steel
Additional Information
Tool Style:
GDFM
Insert Size:
6020
Chipbreaker:
DM
Insert Grade:
PR1225
Material:
Carbide
Coating Process:
PVD

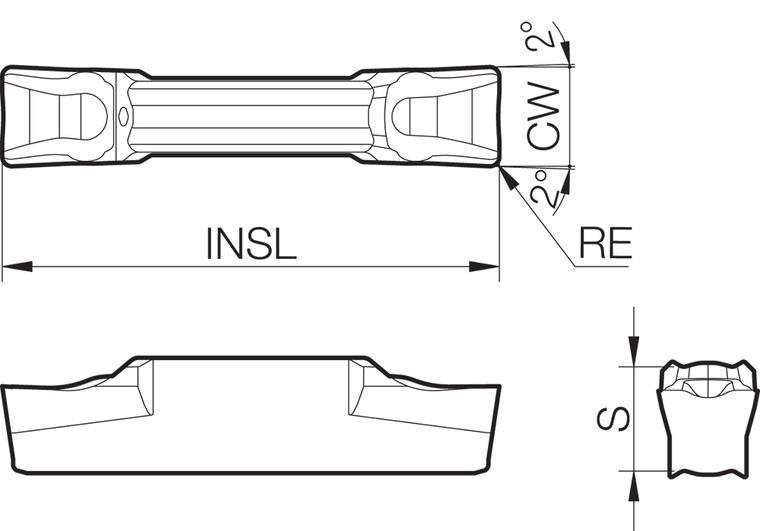

[S] Thickness (mm):
4.50
[RE] Corner Radius (mm):
0.40
[INSL] Insert Length (mm):
20.00
Application:
Deep Face Grooving|Face Grooving|Traversing
Hand:
Neutral
Rake:
Positive
[CDX] Max Depth of Cut (mm):
32.00
[CWN] Cutting Width Minimum (mm):
6.00
[CWX] Cutting Width Maximum (mm):
6.00
Primary Workpiece Material:
(P) Steel
Full Radius:
No
Number of Cutting Edges:
2
Usage Classification:
Continuous
Cutting Range:
Medium-Roughing
Insert Holding Method:
Clamp
Unit (inch/mm):
mm
Feature 1:
Insert for Deep Grooving, Traversing
Feature 2:
2 Cutting Edges
Feature 3:
Superior wear and oxidation resistant MEGACOAT on micro grain carbide substrate
Feature 4:
Application: Light interrupted to interrupted cutting of stainless steel
ANSI Part Number:
GDFM6020N040DMPR1225
ISO Part Number:
GDFM6020N-040DM
US Stock:
30
Worldwide Stock:
180
Old Material Number:
8834516
Compatible Toolholder (Partial):
KGDFR…-6...-C, KGDFL…-6...-C
[S] Thickness:
0.177"
[RE] Corner Radius:
1/64"
[INSL] Insert Length (Decimal Inch):
0.7874
[CW] Cutting Width (Decimal Inch):
0.2362
[CW] Cutting Width (mm):
6.00
[CDX] Max Depth of Cut (Decimal Inch):
1.2598
[CWN] Cutting Width Minimum (Decimal Inch):
0.2362
[CWX] Cutting Width Maximum (Decimal Inch):
0.2362
