GDM 1516L003PF15D PR1225 Grade PVD Carbide, Indexable Cut-Off Insert

GDM 1516L003PF15D PR1225 Grade PVD Carbide, Indexable Cut-Off Insert

SKU:
TKE10423
|
UPC:
4960664685554
$26.31
(No reviews yet)
Width:
1.77 (in)
Height:
0.39 (in)
Depth:
4.13 (in)
Current Stock:
Adding to cart… The item has been added
Description
GDM 1516L003PF15D PR1225 Grade PVD Carbide, 1.50mm Cutting Width, Left-Hand Cut-Off Insert for Light Interruption and Medium-Roughing in (P) Steel and (M) Stainless Steel
Additional Information
Tool Style:
GDM
Insert Size:
1516
Chipbreaker:
PF
Insert Grade:
PR1225
Material:
Carbide
Coating Process:
PVD

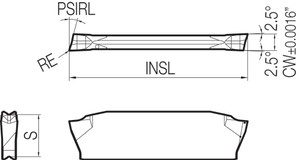

[S] Thickness (mm):
3.70
[RE] Corner Radius (mm):
0.03
[INSL] Insert Length (mm):
16.00
Application:
Cut-Off|Small Parts Machining
Hand:
Left-Hand
Rake:
Positive
[CWN] Cutting Width Minimum (mm):
1.50
[CWX] Cutting Width Maximum (mm):
1.50
Primary Workpiece Material:
(P) Steel
Full Radius:
No
Number of Cutting Edges:
2
Usage Classification:
Light Interruption
Cutting Range:
Medium-Roughing
Insert Holding Method:
Clamp
Unit (inch/mm):
mm
Feature 1:
Insert for Cut-Off for Small Parts Machining
Feature 2:
15 Degree Lead Angle / Low Feed / 2-edge
Feature 3:
2 Cutting Edges
Feature 4:
Superior wear and oxidation resistant MEGACOAT on micro grain carbide substrate
Feature 5:
Application: Light interrupted to interrupted cutting of stainless steel
ANSI Part Number:
GDM1516L003PF15DPR1225
ISO Part Number:
GDM1516L-003PF-15D
US Stock:
0
Worldwide Stock:
40
Old Material Number:
8838335
Compatible Toolholder (Partial):
KGDL...JX-1.5(…), KGDL...-1.5, KGDSL...JX-1.5…
[S] Thickness:
0.146"
[RE] Corner Radius:
0.001"
[INSL] Insert Length (Decimal Inch):
0.6299
[CW] Cutting Width (Decimal Inch):
0.0591
[CW] Cutting Width (mm):
1.50
[CWN] Cutting Width Minimum (Decimal Inch):
0.0591
[CWX] Cutting Width Maximum (Decimal Inch):
0.0591
