GDM 2520R003PF15D PR1215 Grade PVD Carbide, Indexable Cut-Off Insert

GDM 2520R003PF15D PR1215 Grade PVD Carbide, Indexable Cut-Off Insert

SKU:
TKH10867
|
UPC:
4960664683789
$26.31
(No reviews yet)
Width:
1.77 (in)
Height:
0.39 (in)
Depth:
4.13 (in)
Current Stock:
Adding to cart… The item has been added
Description
GDM 2520R003PF15D PR1215 Grade PVD Carbide, 2.50mm Groove Width, Right-Hand Cut-Off Insert for Light Interruption in (P) Carbon/Alloy Steel and (M) Stainless Steel Material Applications
Additional Information
Tool Style:
GDM
Insert Size:
2520
Chipbreaker:
PF
Insert Grade:
PR1215
Material:
Carbide
Coating Process:
PVD

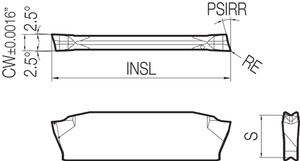

[S] Thickness (mm):
4.30
[RE] Corner Radius (mm):
0.03
[INSL] Insert Length (mm):
20.00
Application:
Cut-Off|Small Parts Machining
Hand:
Right-Hand
Rake:
Positive
[CWN] Cutting Width Minimum (mm):
2.50
[CWX] Cutting Width Maximum (mm):
2.50
Primary Workpiece Material:
(P) Steel
Full Radius:
No
Number of Cutting Edges:
2
Usage Classification:
Light Interruption
Cutting Range:
Medium
Insert Holding Method:
Clamp
Unit (inch/mm):
mm
Feature 1:
Insert for Cut-Off for Small Parts Machining
Feature 2:
15 Degree Lead Angle / Low Feed / 2-edge
Feature 3:
2 Cutting Edges
Feature 4:
Superior wear and oxidation-resistant MEGACOAT on micro-grain carbide substrate
Feature 5:
Application: Superior adhesion resistance and longer tool life for steel and stainless steel machining
ANSI Part Number:
GDM2520R003PF15DPR1215
ISO Part Number:
GDM2520R-003PF-15D
US Stock:
0
Worldwide Stock:
0
Old Material Number:
8867650
Compatible Toolholder (Partial):
KGDR...-2.4JX, KGDR...JX-2.4, KGDR...-2.4…
[S] Thickness:
0.169"
[RE] Corner Radius:
0.001"
[INSL] Insert Length (Decimal Inch):
0.7874
[CW] Cutting Width (Decimal Inch):
0.0984
[CW] Cutting Width (mm):
2.50
[CWN] Cutting Width Minimum (Decimal Inch):
0.0984
[CWX] Cutting Width Maximum (Decimal Inch):
0.0984
