GDM 3015N040GMI PR1215 Grade PVD Carbide, Indexable Grooving Insert

GDM 3015N040GMI PR1215 Grade PVD Carbide, Indexable Grooving Insert

SKU:
TKH10944
|
UPC:
4960664756339
$27.93
(No reviews yet)
Width:
1.77 (in)
Height:
0.39 (in)
Depth:
4.13 (in)
Current Stock:
Adding to cart… The item has been added
Description
GDM 3015N040GMI PR1215 Grade PVD Carbide, 3.00mm Groove Width, Neutral Grooving Insert for Continuous and Medium in (P) Steel and (M) Stainless Steel
Additional Information
Tool Style:
GDM
Insert Size:
3015
Chipbreaker:
GMI
Insert Grade:
PR1215
Material:
Carbide
Coating Process:
PVD

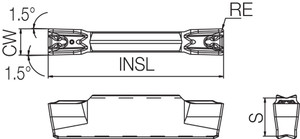

[S] Thickness (mm):
4.60
[RE] Corner Radius (mm):
0.40
[INSL] Insert Length (mm):
15.50
Application:
Internal Grooving
Hand:
Neutral
Rake:
Positive
[CDX] Max Depth of Cut (mm):
8.00
[CWN] Cutting Width Minimum (mm):
3.00
[CWX] Cutting Width Maximum (mm):
3.00
Primary Workpiece Material:
(P) Steel
Full Radius:
No
Number of Cutting Edges:
2
Usage Classification:
Continuous
Cutting Range:
Medium
Insert Holding Method:
Clamp
Unit (inch/mm):
mm
Feature 1:
Insert for Internal Grooving
Feature 2:
2 Cutting Edges
Feature 3:
Superior wear and oxidation-resistant MEGACOAT on micro-grain carbide substrate
Feature 4:
Application: Superior adhesion-resistant and long tool life for steel and stainless steel cutting
ANSI Part Number:
GDM3015N040GMIPR1215
ISO Part Number:
GDM3015N-040GMI
US Stock:
10
Worldwide Stock:
980
Old Material Number:
8845654
Compatible Toolholder (Partial):
KGDIR…-3, KGDIL…-3
[S] Thickness:
0.181"
[RE] Corner Radius:
1/64"
[INSL] Insert Length (Decimal Inch):
0.6102
[CW] Cutting Width (Decimal Inch):
0.1181
[CW] Cutting Width (mm):
3.00
[CDX] Max Depth of Cut (Decimal Inch):
0.3150
[CWN] Cutting Width Minimum (Decimal Inch):
0.1181
[CWX] Cutting Width Maximum (Decimal Inch):
0.1181
