GDM 3015N150RCM TN620 Grade Uncoated Cermet, Indexable Grooving Insert

GDM 3015N150RCM TN620 Grade Uncoated Cermet, Indexable Grooving Insert

SKU:
TSR10960
$22.07
(No reviews yet)
Width:
1.77 (in)
Height:
0.39 (in)
Depth:
4.13 (in)
Current Stock:
Adding to cart… The item has been added
Description
GDM 3015N150RCM TN620 Grade Uncoated Cermet, 3.00mm Groove Width, Neutral Grooving Insert for Continuous and Finishing-Medium in (P) Steel
Additional Information
Tool Style:
GDM
Insert Size:
3015
Chipbreaker:
CM
Insert Grade:
TN620
Material:
Cermet
Coating Process:
Uncoated

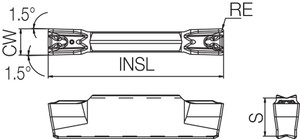

[S] Thickness (mm):
4.60
[RE] Corner Radius (mm):
1.50
[INSL] Insert Length (mm):
16.30
Application:
Internal Grooving
Hand:
Neutral
Rake:
Positive
[CDX] Max Depth of Cut (mm):
8.00
[CWN] Cutting Width Minimum (mm):
3.00
[CWX] Cutting Width Maximum (mm):
3.00
Primary Workpiece Material:
(P) Steel
Full Radius:
Yes
Number of Cutting Edges:
2
Usage Classification:
Continuous
Cutting Range:
Finishing-Medium
Insert Holding Method:
Clamp
Unit (inch/mm):
mm
Feature 1:
Insert for Internal Grooving
Feature 2:
2 Cutting Edges
Feature 3:
Inner structure has high toughness and chipping resistance along with thermal shock resistance
Feature 4:
Application: Recommended cermet for stable steel machining and high quality surface finish
ANSI Part Number:
GDM3015N150RCMTN620
ISO Part Number:
GDM3015N-150R-CM
Old Material Number:
8845946
Compatible Toolholder (Partial):
KGDIR…-3, KGDIL…-3
[S] Thickness:
0.181"
[RE] Corner Radius:
0.059"
[INSL] Insert Length (Decimal Inch):
0.6417
[CW] Cutting Width (Decimal Inch):
0.1181
[CW] Cutting Width (mm):
3.00
[CDX] Max Depth of Cut (Decimal Inch):
0.3150
[CWN] Cutting Width Minimum (Decimal Inch):
0.1181
[CWX] Cutting Width Maximum (Decimal Inch):
0.1181
