GDM 3020L003PF15D PR1535 Grade PVD Carbide, Indexable Cut-Off Insert

GDM 3020L003PF15D PR1535 Grade PVD Carbide, Indexable Cut-Off Insert

SKU:
TLC10874
|
UPC:
4960664733583
$27.93
(No reviews yet)
Width:
1.77 (in)
Height:
0.39 (in)
Depth:
4.13 (in)
Current Stock:
Adding to cart… The item has been added
Description
GDM 3020L003PF15D PR1535 Grade PVD Carbide, 3.00mm Cutting Width, Left-Hand Cut-Off Insert for Light Interruption and Medium-Roughing in (S) Heat-Resistant Alloy and (M) Stainless Steel
Additional Information
Tool Style:
GDM
Insert Size:
3020
Chipbreaker:
PF
Insert Grade:
PR1535
Material:
Carbide
Coating Process:
PVD

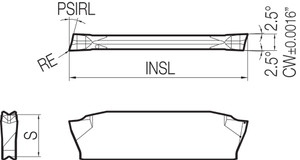

[S] Thickness (mm):
4.30
[RE] Corner Radius (mm):
0.03
[INSL] Insert Length (mm):
20.00
Application:
Cut-Off|Small Parts Machining
Hand:
Left-Hand
Rake:
Positive
[CWN] Cutting Width Minimum (mm):
3.00
[CWX] Cutting Width Maximum (mm):
3.00
Primary Workpiece Material:
(M) Stainless Steel
Full Radius:
No
Number of Cutting Edges:
2
Usage Classification:
Light Interruption
Cutting Range:
Medium-Roughing
Insert Holding Method:
Clamp
Unit (inch/mm):
mm
Feature 1:
Insert for Cut-Off for Small Parts Machining
Feature 2:
15 Degree Lead Angle / Low Feed / 2-edge
Feature 3:
2 Cutting Edges
Feature 4:
Stabilized turning operations and long tool life with MEGACOAT NANO coating technology
Feature 5:
Application: PVD for titanium alloy and precipitation hardened stainless steel
ANSI Part Number:
GDM3020L003PF15DPR1535
ISO Part Number:
GDM3020L-003PF-15D
US Stock:
90
Worldwide Stock:
130
Old Material Number:
8842598
Compatible Toolholder (Partial):
KGDL...-2…, KGDL...-2(…), KGDSL...JX-2…
[S] Thickness:
0.169"
[RE] Corner Radius:
0.001"
[INSL] Insert Length (Decimal Inch):
0.7874
[CW] Cutting Width (Decimal Inch):
0.1181
[CW] Cutting Width (mm):
3.00
[CWN] Cutting Width Minimum (Decimal Inch):
0.1181
[CWX] Cutting Width Maximum (Decimal Inch):
0.1181
