GDM 3020N020GM TN90 Grade Uncoated Cermet, Indexable Grooving Insert

GDM 3020N020GM TN90 Grade Uncoated Cermet, Indexable Grooving Insert

SKU:
TSO10539
|
UPC:
4960664612727
$20.06
(No reviews yet)
Width:
1.77 (in)
Height:
0.39 (in)
Depth:
4.13 (in)
Current Stock:
Adding to cart… The item has been added
Description
GDM 3020N020GM TN90 Grade Uncoated Cermet, 3.00mm Groove Width, Neutral Grooving Insert for Continuous and Finishing-Medium in (P) Steel and (M) Stainless Steel
Additional Information
Tool Style:
GDM
Insert Size:
3020
Chipbreaker:
GM
Insert Grade:
TN90
Material:
Cermet
Coating Process:
Uncoated

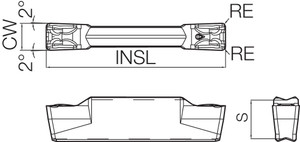

[S] Thickness (mm):
4.30
[RE] Corner Radius (mm):
0.20
[INSL] Insert Length (mm):
20.00
Application:
External Grooving|Traversing
Hand:
Neutral
Rake:
Positive
[CDX] Max Depth of Cut (mm):
25.50
[CWN] Cutting Width Minimum (mm):
3.00
[CWX] Cutting Width Maximum (mm):
3.00
Primary Workpiece Material:
(P) Steel
Full Radius:
No
Number of Cutting Edges:
2
Usage Classification:
Continuous
Cutting Range:
Finishing-Medium
Insert Holding Method:
Clamp
Unit (inch/mm):
mm
Feature 1:
Insert for External Grooving, Traversing
Feature 2:
General Purpose / 2-edge
Feature 3:
2 Cutting Edges
Feature 4:
Cermet with great surface finish eliminates many secondary operations
Feature 5:
Application: For grooving and cut-off of steel
ANSI Part Number:
GDM3020N020GMTN90
ISO Part Number:
GDM3020N-020GM
US Stock:
0
Worldwide Stock:
0
Old Material Number:
8834907
Compatible Toolholder (Partial):
KGDR...JX-2(…), KGDR...-2(…), KGDR...JX-2.4(…), KGDR...-2.4(…), KGDR...JX-3(…), KGDR...-3(…), KGDL...JX-2(…), KGDL...-2(…), KGDL...JX-2.4(…), KGDL...-2.4(…), KGDL...JX-3(…), KGDL...-3(…)
[S] Thickness:
0.169"
[RE] Corner Radius:
0.008"
[INSL] Insert Length (Decimal Inch):
0.7874
[CW] Cutting Width (Decimal Inch):
0.1181
[CW] Cutting Width (mm):
3.00
[CDX] Max Depth of Cut (Decimal Inch):
1.0039
[CWN] Cutting Width Minimum (Decimal Inch):
0.1181
[CWX] Cutting Width Maximum (Decimal Inch):
0.1181
