GDM 3020N150RCM PR1225 Grade PVD Carbide, Indexable Grooving Insert

GDM 3020N150RCM PR1225 Grade PVD Carbide, Indexable Grooving Insert

SKU:
TKE10750
|
UPC:
4960664626922
$30.77
(No reviews yet)
Width:
1.77 (in)
Height:
0.39 (in)
Depth:
4.13 (in)
Current Stock:
Adding to cart… The item has been added
Description
GDM 3020N150RCM PR1225 Grade PVD Carbide, 3.00mm Groove Width, Neutral Grooving Insert for Continuous and Medium-Roughing in (P) Steel and (M) Stainless Steel
Additional Information
Tool Style:
GDM
Insert Size:
3020
Chipbreaker:
CM
Insert Grade:
PR1225
Material:
Carbide
Coating Process:
PVD

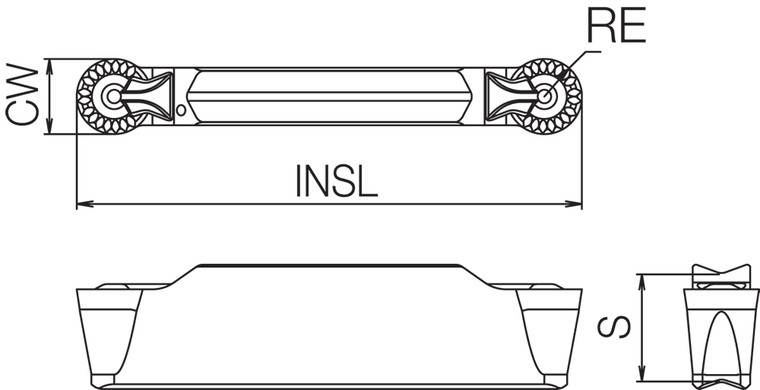

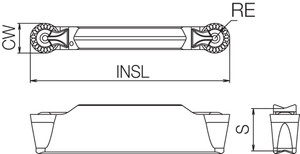

[S] Thickness (mm):
4.30
[RE] Corner Radius (mm):
1.50
[INSL] Insert Length (mm):
20.00
Application:
Copying
Hand:
Neutral
Rake:
Positive
[CDX] Max Depth of Cut (mm):
25.50
[CWN] Cutting Width Minimum (mm):
3.00
[CWX] Cutting Width Maximum (mm):
3.00
Primary Workpiece Material:
(P) Steel
Full Radius:
Yes
Number of Cutting Edges:
2
Usage Classification:
Continuous
Cutting Range:
Medium-Roughing
Insert Holding Method:
Clamp
Unit (inch/mm):
mm
Feature 1:
Insert for Full-R, Copying
Feature 2:
2 Cutting Edges
Feature 3:
Superior wear and oxidation resistant MEGACOAT on micro grain carbide substrate
Feature 4:
Application: Light interrupted to interrupted cutting of stainless steel
ANSI Part Number:
GDM3020N150RCMPR1225
ISO Part Number:
GDM3020N-150R-CM
US Stock:
280
Worldwide Stock:
0
Old Material Number:
8834570
Compatible Toolholder (Partial):
KGDR...JX-2(…), KGDR...-2(…), KGDR...JX-2.4(…), KGDR...-2.4(…), KGDR...JX-3(…), KGDR...-3(…), KGDL...JX-2(…), KGDL...-2(…), KGDL...JX-2.4(…), KGDL...-2.4(…), KGDL...JX-3(…), KGDL...-3(…)
[S] Thickness:
0.169"
[RE] Corner Radius:
0.059"
[INSL] Insert Length (Decimal Inch):
0.7874
[CW] Cutting Width (Decimal Inch):
0.1181
[CW] Cutting Width (mm):
3.00
[CDX] Max Depth of Cut (Decimal Inch):
1.0039
[CWN] Cutting Width Minimum (Decimal Inch):
0.1181
[CWX] Cutting Width Maximum (Decimal Inch):
0.1181
