GDM 5020N040GL TN620 Grade Uncoated Cermet, Indexable Grooving Insert
$23.16
(No reviews yet)
Write a Review
GDM 5020N040GL TN620 Grade Uncoated Cermet, Indexable Grooving Insert
GDM 5020N040GL TN620 Grade Uncoated Cermet, 5.00mm Groove Width, Neutral Grooving Insert for Continuous and Finishing-Medium in (P) Steel
- Tool Style:
- GDM
- Insert Size:
- 5020
- Chipbreaker:
- GL
- Insert Grade:
- TN620
- Material:
- Cermet
- Coating Process:
- Uncoated

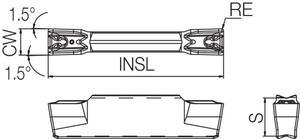

- [S] Thickness (mm):
- 4.30
- [RE] Corner Radius (mm):
- 0.40
- [INSL] Insert Length (mm):
- 20.00
- Application:
- External Grooving|Traversing
- Hand:
- Neutral
- Rake:
- Positive
- [CDX] Max Depth of Cut (mm):
- 25.00
- [CWN] Cutting Width Minimum (mm):
- 5.00
- [CWX] Cutting Width Maximum (mm):
- 5.00
- Primary Workpiece Material:
- (P) Steel
- Full Radius:
- No
- Number of Cutting Edges:
- 2
- Usage Classification:
- Continuous
- Cutting Range:
- Finishing-Medium
- Insert Holding Method:
- Clamp
- Unit (inch/mm):
- mm
- Feature 1:
- Insert for External Grooving, Traversing
- Feature 2:
- Low Feed / 2-edge
- Feature 3:
- 2 Cutting Edges
- Feature 4:
- Inner structure has high toughness and chipping resistance along with thermal shock resistance
- Feature 5:
- Application: Recommended cermet for stable steel machining and high quality surface finish
- ANSI Part Number:
- GDM5020N040GLTN620
- ISO Part Number:
- GDM5020N-040GL
- Old Material Number:
- 8844907
- Compatible Toolholder (Partial):
- KGDR...JX-4, KGDR...-4..., KGDR...-5…, KGDR-4…, KGDR-5…, KGDL...JX-4, KGDL...-4..., KGDL...-5…, KGDL-4…, KGDL-5…
- [S] Thickness:
- 0.169"
- [RE] Corner Radius:
- 1/64"
- [INSL] Insert Length (Decimal Inch):
- 0.7874
- [CW] Cutting Width (Decimal Inch):
- 0.1969
- [CW] Cutting Width (mm):
- 5.00
- [CDX] Max Depth of Cut (Decimal Inch):
- 0.9843
- [CWN] Cutting Width Minimum (Decimal Inch):
- 0.1969
- [CWX] Cutting Width Maximum (Decimal Inch):
- 0.1969
