GDM 5020N040GM PR1225 Grade PVD Carbide, Indexable Grooving Insert
$34.89
(No reviews yet)
Write a Review
GDM 5020N040GM PR1225 Grade PVD Carbide, Indexable Grooving Insert
GDM 5020N040GM PR1225 Grade PVD Carbide, 5.00mm Groove Width, Neutral Grooving Insert for Continuous and Medium-Roughing in (P) Steel and (M) Stainless Steel
- Tool Style:
- GDM
- Insert Size:
- 5020
- Chipbreaker:
- GM
- Insert Grade:
- PR1225
- Material:
- Carbide
- Coating Process:
- PVD

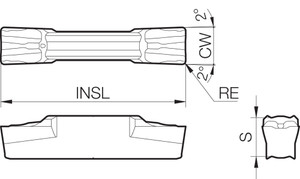

- [S] Thickness (mm):
- 4.30
- [RE] Corner Radius (mm):
- 0.40
- [INSL] Insert Length (mm):
- 20.00
- Application:
- External Grooving|Traversing
- Hand:
- Neutral
- Rake:
- Positive
- [CDX] Max Depth of Cut (mm):
- 25.00
- [CWN] Cutting Width Minimum (mm):
- 5.00
- [CWX] Cutting Width Maximum (mm):
- 5.00
- Primary Workpiece Material:
- (P) Steel
- Full Radius:
- No
- Number of Cutting Edges:
- 2
- Usage Classification:
- Continuous
- Cutting Range:
- Medium-Roughing
- Insert Holding Method:
- Clamp
- Unit (inch/mm):
- mm
- Feature 1:
- Insert for External Grooving, Traversing
- Feature 2:
- General Purpose / 2-edge
- Feature 3:
- 2 Cutting Edges
- Feature 4:
- Superior wear and oxidation resistant MEGACOAT on micro grain carbide substrate
- Feature 5:
- Application: Light interrupted to interrupted cutting of stainless steel
- ANSI Part Number:
- GDM5020N040GMPR1225
- ISO Part Number:
- GDM5020N-040GM
- US Stock:
- 650
- Worldwide Stock:
- 0
- Old Material Number:
- 8833031
- Compatible Toolholder (Partial):
- KGDR...JX-4, KGDR...-4..., KGDR...-5…, KGDR-4…, KGDR-5…, KGDL...JX-4, KGDL...-4..., KGDL...-5…, KGDL-4…, KGDL-5…
- [S] Thickness:
- 0.169"
- [RE] Corner Radius:
- 1/64"
- [INSL] Insert Length (Decimal Inch):
- 0.7874
- [CW] Cutting Width (Decimal Inch):
- 0.1969
- [CW] Cutting Width (mm):
- 5.00
- [CDX] Max Depth of Cut (Decimal Inch):
- 0.9843
- [CWN] Cutting Width Minimum (Decimal Inch):
- 0.1969
- [CWX] Cutting Width Maximum (Decimal Inch):
- 0.1969
- Series Description (PeopleSoft):
- KGD Grooving
