GDMS 2020R020PM6D PR1215 Grade PVD Carbide, Indexable Cut-Off Insert

GDMS 2020R020PM6D PR1215 Grade PVD Carbide, Indexable Cut-Off Insert

SKU:
TKH10581
|
UPC:
4960664612611
$21.06
(No reviews yet)
Width:
1.77 (in)
Height:
0.39 (in)
Depth:
4.13 (in)
Current Stock:
Adding to cart… The item has been added
Description
GDMS 2020R020PM6D PR1215 Grade PVD Carbide, 2.00mm Cutting Width, Right-Hand Cut-Off Insert for Light Interruption and Medium in (P) Steel and (M) Stainless Steel
Additional Information
Tool Style:
GDMS
Insert Size:
2020
Chipbreaker:
PM
Insert Grade:
PR1215
Material:
Carbide
Coating Process:
PVD

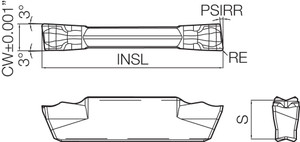

[S] Thickness (mm):
4.30
[RE] Corner Radius (mm):
0.20
[INSL] Insert Length (mm):
20.00
Application:
Cut-Off
Hand:
Right-Hand
Rake:
Positive
[CWN] Cutting Width Minimum (mm):
2.00
[CWX] Cutting Width Maximum (mm):
2.00
Primary Workpiece Material:
(P) Steel
Full Radius:
No
Number of Cutting Edges:
1
Usage Classification:
Light Interruption
Cutting Range:
Medium
Insert Holding Method:
Clamp
Unit (inch/mm):
mm
Feature 1:
Insert for Cut-Off
Feature 2:
6 Degree Lead Angle / 1-edge
Feature 3:
1 Cutting Edge
Feature 4:
Superior wear and oxidation-resistant MEGACOAT on micro-grain carbide substrate
Feature 5:
Application: Superior adhesion resistance and longer tool life for steel and stainless steel machining
ANSI Part Number:
GDMS2020R020PM6DPR1215
ISO Part Number:
GDMS2020R-020PM-6D
US Stock:
0
Worldwide Stock:
10
Old Material Number:
8834601
Compatible Toolholder (Partial):
KGDR...-2…, KGDR...-2(…), KGDSR...JX-2…
[S] Thickness:
0.169"
[RE] Corner Radius:
0.008"
[INSL] Insert Length (Decimal Inch):
0.7874
[CW] Cutting Width (Decimal Inch):
0.0787
[CW] Cutting Width (mm):
2.00
[CWN] Cutting Width Minimum (Decimal Inch):
0.0787
[CWX] Cutting Width Maximum (Decimal Inch):
0.0787
