GDMS 2220N020GM TN620 Grade Uncoated Cermet, Indexable Grooving Insert

GDMS 2220N020GM TN620 Grade Uncoated Cermet, Indexable Grooving Insert

SKU:
TSR10610
$15.20
(No reviews yet)
Width:
1.77 (in)
Height:
0.39 (in)
Depth:
4.13 (in)
Current Stock:
Adding to cart… The item has been added
Description
GDMS 2220N020GM TN620 Grade Uncoated Cermet, 2.20mm Groove Width, Neutral Grooving Insert for Continuous and Finishing-Medium in (P) Steel
Additional Information
Tool Style:
GDMS
Insert Size:
2220
Chipbreaker:
GM
Insert Grade:
TN620
Material:
Cermet
Coating Process:
Uncoated

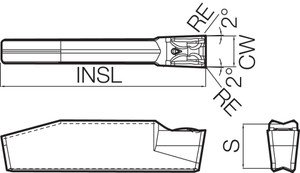

[S] Thickness (mm):
4.30
[RE] Corner Radius (mm):
0.20
[INSL] Insert Length (mm):
20.00
Application:
External Grooving|Traversing
Hand:
Neutral
Rake:
Positive
[CDX] Max Depth of Cut (mm):
17.00
[CWN] Cutting Width Minimum (mm):
2.20
[CWX] Cutting Width Maximum (mm):
2.20
Primary Workpiece Material:
(P) Steel
Full Radius:
No
Number of Cutting Edges:
1
Usage Classification:
Continuous
Cutting Range:
Finishing-Medium
Insert Holding Method:
Clamp
Unit (inch/mm):
mm
Feature 1:
Insert for External Grooving, Traversing
Feature 2:
General Purpose / 1-edge
Feature 3:
1 Cutting Edge
Feature 4:
Inner structure has high toughness and chipping resistance along with thermal shock resistance
Feature 5:
Application: Recommended cermet for stable steel machining and high quality surface finish
ANSI Part Number:
GDMS2220N020GMTN620
ISO Part Number:
GDMS2220N-020GM
Old Material Number:
8844916
Compatible Toolholder (Partial):
KGDR...JX-2(…), KGDR...-2(…), KGDL...JX-2(…), KGDL...-2(…)
[S] Thickness:
0.169"
[RE] Corner Radius:
0.008"
[INSL] Insert Length (Decimal Inch):
0.7874
[CW] Cutting Width (Decimal Inch):
0.0866
[CW] Cutting Width (mm):
2.20
[CDX] Max Depth of Cut (Decimal Inch):
0.6693
[CWN] Cutting Width Minimum (Decimal Inch):
0.0866
[CWX] Cutting Width Maximum (Decimal Inch):
0.0866
