GDMS 4020N030PM PR1215 Grade PVD Carbide, Indexable Cut-Off Insert
$24.05
(No reviews yet)
Write a Review
GDMS 4020N030PM PR1215 Grade PVD Carbide, Indexable Cut-Off Insert
GDMS 4020N030PM PR1215 Grade PVD Carbide, 4.00mm Cutting Width, Neutral Cut-Off Insert for Light Interruption and Medium in (P) Steel and (M) Stainless Steel
- Tool Style:
- GDMS
- Insert Size:
- 4020
- Chipbreaker:
- PM
- Insert Grade:
- PR1215
- Material:
- Carbide
- Coating Process:
- PVD

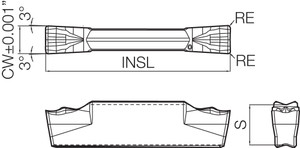

- [S] Thickness (mm):
- 4.30
- [RE] Corner Radius (mm):
- 0.30
- [INSL] Insert Length (mm):
- 20.00
- Application:
- Cut-Off
- Hand:
- Neutral
- Rake:
- Positive
- [CWN] Cutting Width Minimum (mm):
- 4.00
- [CWX] Cutting Width Maximum (mm):
- 4.00
- Primary Workpiece Material:
- (P) Steel
- Full Radius:
- No
- Number of Cutting Edges:
- 1
- Usage Classification:
- Light Interruption
- Cutting Range:
- Medium
- Insert Holding Method:
- Clamp
- Unit (inch/mm):
- mm
- Feature 1:
- Insert for Cut-Off
- Feature 2:
- 1-edge
- Feature 3:
- 1 Cutting Edge
- Feature 4:
- Superior wear and oxidation-resistant MEGACOAT on micro-grain carbide substrate
- Feature 5:
- Application: Superior adhesion resistance and longer tool life for steel and stainless steel machining
- ANSI Part Number:
- GDMS4020N030PMPR1215
- ISO Part Number:
- GDMS4020N-030PM
- US Stock:
- 0
- Worldwide Stock:
- 10
- Old Material Number:
- 8834615
- Compatible Toolholder (Partial):
- KGDR...-3JX, KGDR...JX-3, KGDR...-3, KGDR…K-3…, KGDL...-3JX, KGDL...JX-3, KGDL...-3, KGDL…K-3…
- [S] Thickness:
- 0.169"
- [RE] Corner Radius:
- 0.012"
- [INSL] Insert Length (Decimal Inch):
- 0.7874
- [CW] Cutting Width (Decimal Inch):
- 0.1575
- [CW] Cutting Width (mm):
- 4.00
- [CWN] Cutting Width Minimum (Decimal Inch):
- 0.1575
- [CWX] Cutting Width Maximum (Decimal Inch):
- 0.1575
