GE L120005C PR1225 Grade PVD Carbide, Indexable Grooving Insert

GE L120005C PR1225 Grade PVD Carbide, Indexable Grooving Insert

SKU:
TKE16957
$46.78
(No reviews yet)
Width:
1.77 (in)
Height:
0.39 (in)
Depth:
4.13 (in)
Current Stock:
Adding to cart… The item has been added
Description
GE L120005C PR1225 Grade PVD Carbide, 1.20mm Groove Width, Left-Hand Grooving Insert for Continuous and Medium-Roughing in (P) Steel and (M) Stainless Steel
Additional Information
Tool Style:
GE
Insert Size:
120005
Insert Grade:
PR1225
Material:
Carbide
Coating Process:
PVD

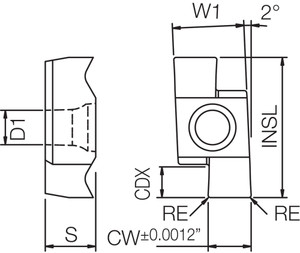

[S] Thickness (mm):
4.05
[RE] Corner Radius (mm):
0.05
[INSL] Insert Length (mm):
11.48
Application:
Internal Grooving
Hand:
Left-Hand
Rake:
Positive
[CDX] Max Depth of Cut (mm):
2.50
[CWN] Cutting Width Minimum (mm):
1.20
[CWX] Cutting Width Maximum (mm):
1.20
Primary Workpiece Material:
(P) Steel
Full Radius:
No
Number of Cutting Edges:
2
Usage Classification:
Continuous
Cutting Range:
Medium-Roughing
Insert Holding Method:
Screw
Unit (inch/mm):
mm
Feature 1:
Insert for Internal Grooving
Feature 2:
2-edge
Feature 3:
2 Cutting Edges
Feature 4:
Superior wear and oxidation resistant MEGACOAT on micro grain carbide substrate
Feature 5:
Application: Light interrupted to interrupted cutting of stainless steel
ANSI Part Number:
GEL120005CPR1225
ISO Part Number:
GEL120-005C
Old Material Number:
8836761
Compatible Toolholder (Partial):
SIGEL...C-EH, SIGEL...C-WH
[S] Thickness:
0.159"
[RE] Corner Radius:
0.002"
[INSL] Insert Length (Decimal Inch):
0.4520
[CW] Cutting Width (Decimal Inch):
0.0472
[CW] Cutting Width (mm):
1.20
[CDX] Max Depth of Cut (Decimal Inch):
0.0984
[CWN] Cutting Width Minimum (Decimal Inch):
0.0472
[CWX] Cutting Width Maximum (Decimal Inch):
0.0472
