GE R062004B PR1025 Grade PVD Carbide, Indexable Grooving Insert

GE R062004B PR1025 Grade PVD Carbide, Indexable Grooving Insert

SKU:
8822738
|
UPC:
B
$56.55
(No reviews yet)
Width:
1.77 (in)
Height:
0.39 (in)
Depth:
4.13 (in)
Current Stock:
Adding to cart… The item has been added
Description
GE R062004B PR1025 Grade PVD Carbide, 0.0618" Groove Width, Right-Hand Grooving Insert for Light Interruption and Medium in (P) Steel and (M) Stainless Steel
Additional Information
Tool Style:
GE
Insert Size:
062004
Insert Grade:
PR1025
Material:
Carbide
Coating Process:
PVD

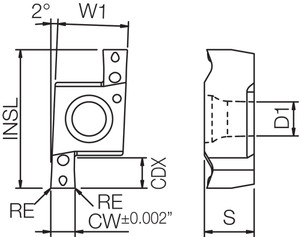

[S] Thickness (mm):
3.18
[RE] Corner Radius (mm):
0.10
[INSL] Insert Length (mm):
8.20
Application:
Internal Grooving
Hand:
Right-Hand
Rake:
Positive
[CDX] Max Depth of Cut (mm):
2.20
[CWN] Cutting Width Minimum (mm):
1.57
[CWX] Cutting Width Maximum (mm):
1.57
Primary Workpiece Material:
(P) Steel
Full Radius:
No
Number of Cutting Edges:
2
Usage Classification:
Light Interruption
Cutting Range:
Medium
Insert Holding Method:
Screw
Unit (inch/mm):
inch
Feature 1:
Insert for Internal Grooving
Feature 2:
2-edge
Feature 3:
2 Cutting Edges
Feature 4:
TiCN base PVD coated micro-grain carbide
Feature 5:
Application: General purpose cutting of steel and stainless steel, stable and long tool life
ANSI Part Number:
GER062004BPR1025
ISO Part Number:
GER062-004B
US Stock:
160
Worldwide Stock:
0
Old Material Number:
8822738
Compatible Toolholder (Partial):
SIGER...EH, SIGER...B-EH, SIGER...B-WH, SIGER...B-WH-90
[S] Thickness:
1/8"
[RE] Corner Radius:
0.004"
[INSL] Insert Length (Decimal Inch):
0.3228
[CW] Cutting Width (Decimal Inch):
0.0618
[CW] Cutting Width (mm):
1.57
[CDX] Max Depth of Cut (Decimal Inch):
0.0866
[CWN] Cutting Width Minimum (Decimal Inch):
0.0618
[CWX] Cutting Width Maximum (Decimal Inch):
0.0618
