GE R150010CM PR1025 Grade PVD Carbide, Indexable Grooving Insert

GE R150010CM PR1025 Grade PVD Carbide, Indexable Grooving Insert

SKU:
TJE16982
|
UPC:
4960664508457
$31.93
(No reviews yet)
Width:
1.77 (in)
Height:
0.39 (in)
Depth:
4.13 (in)
Current Stock:
Adding to cart… The item has been added
Description
GE R150010CM PR1025 Grade PVD Carbide, 1.50mm Groove Width, Right-Hand Grooving Insert for Light Interruption and Medium in (P) Steel and (M) Stainless Steel
Additional Information
Tool Style:
GE
Insert Size:
150010
Chipbreaker:
M
Insert Grade:
PR1025
Material:
Carbide
Coating Process:
PVD

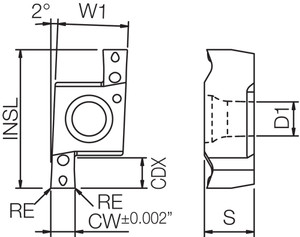

[S] Thickness (mm):
4.05
[RE] Corner Radius (mm):
0.10
[INSL] Insert Length (mm):
11.48
Application:
Internal Grooving
Hand:
Right-Hand
Rake:
Positive
[CDX] Max Depth of Cut (mm):
2.50
[CWN] Cutting Width Minimum (mm):
1.50
[CWX] Cutting Width Maximum (mm):
1.50
Primary Workpiece Material:
(P) Steel
Full Radius:
No
Number of Cutting Edges:
2
Usage Classification:
Light Interruption
Cutting Range:
Medium
Insert Holding Method:
Screw
Unit (inch/mm):
mm
Feature 1:
Insert for Internal Grooving
Feature 2:
2-edge / Molded Chipbreaker
Feature 3:
2 Cutting Edges
Feature 4:
TiCN base PVD coated micro-grain carbide
Feature 5:
Application: General purpose cutting of steel and stainless steel, stable and long tool life
ANSI Part Number:
GER150010CMPR1025
ISO Part Number:
GER150-010CM
US Stock:
4520
Worldwide Stock:
0
Old Material Number:
8825440
Compatible Toolholder (Partial):
SIGER...C-EH, SIGER...C-WH, SIGER...C-WH-90
[S] Thickness:
0.159"
[RE] Corner Radius:
0.004"
[INSL] Insert Length (Decimal Inch):
0.4520
[CW] Cutting Width (Decimal Inch):
0.0591
[CW] Cutting Width (mm):
1.50
[CDX] Max Depth of Cut (Decimal Inch):
0.0984
[CWN] Cutting Width Minimum (Decimal Inch):
0.0591
[CWX] Cutting Width Maximum (Decimal Inch):
0.0591
